Chevrolet Sonic Repair Manual: Crankshaft Balancer Removal

Special Tools

EN-652 Flywheel Holder

For equivalent regional tools, refer to Special Tools.


    Install the EN-652 holder (1). Lock the flywheel (2) or the automatic

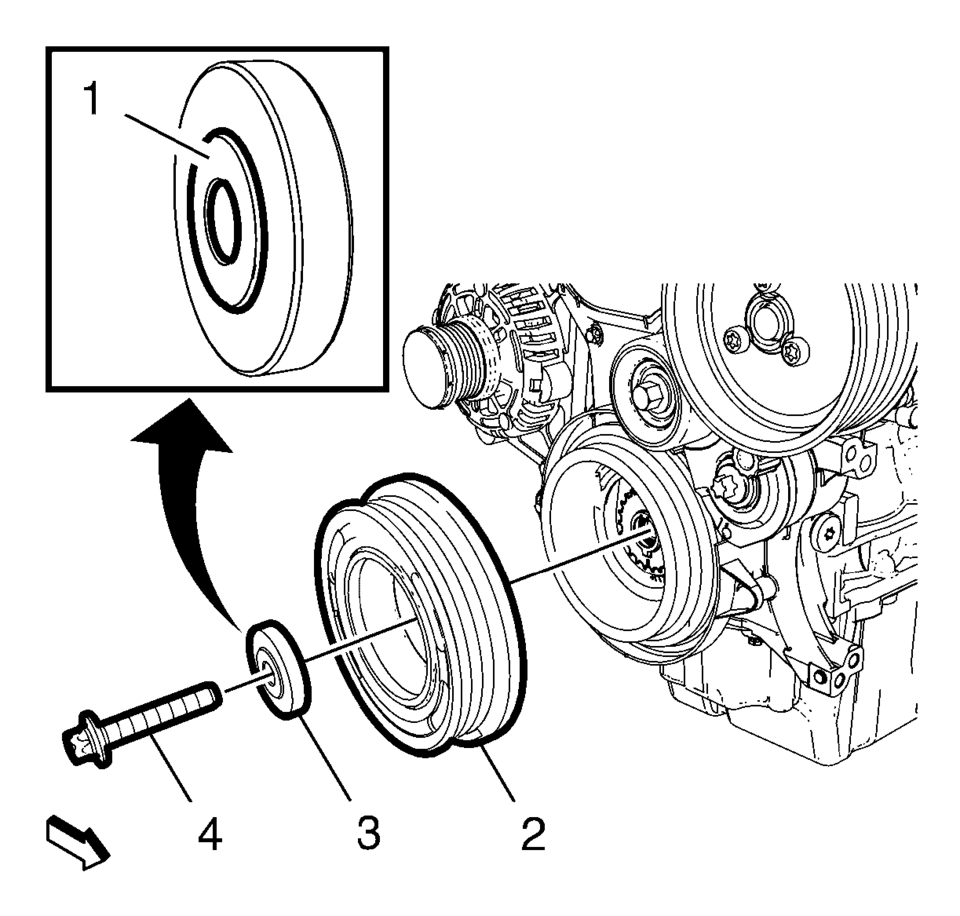

  1. Install the EN-652 holder (1). Lock the flywheel (2) or the automatic transmission flex plate via the starter ring gear.


  2. Remove and DISCARD the crankshaft balancer bolt (4).
  3. Remove the crankshaft balancer washer (3).
  4. Remove the crankshaft balancer (2).
