Nissan Armada 2025-2026 Owner's Manual: Seats, seat belts and Supplemental Restraint System (SRS)

Nissan Armada 2025-2026 Owner's Manual / Illustrated table of contents / Seats, seat belts and Supplemental Restraint System (SRS)

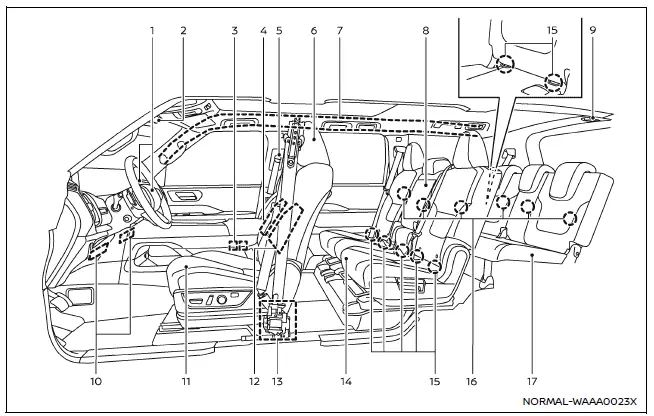

Nissan Armada SRS system components overview with airbags and seat belts
Example

This illustrated section of the Nissan Armada manual provides a comprehensive overview of critical safety systems, including advanced Supplemental Restraint System (SRS) components designed to enhance passenger protection in various driving conditions. Understanding these elements ensures safer operation of the Nissan Armada and helps drivers fully utilize built-in safety technologies.

Supplemental front-impact air bags
Front passenger air bag status light
Occupant classification sensors (weight sensors)
Front central seat-mounted side-impact supplemental air bag*
Seat belts
Head restraints/headrests
Roof-mounted curtain side-impact and rollover supplemental air bags
Armrest (2nd row bench seat)*
Seat belt for 3rd row center seat
Driver and front passenger supplemental knee air bags
Front seats
Front seat-mounted side-impact supplemental air bags
Seat belt pretensioners
2nd row seats
- Child restraints
LATCH (Lower Anchors and Tethers for Children) system (for 2nd row and 3rd row right outboard seats)
Child restraint anchor points (for top tether strap)
3rd row seats
- Child restraints

*: if so equipped
