Chevrolet Sonic Repair Manual: Starter Installation

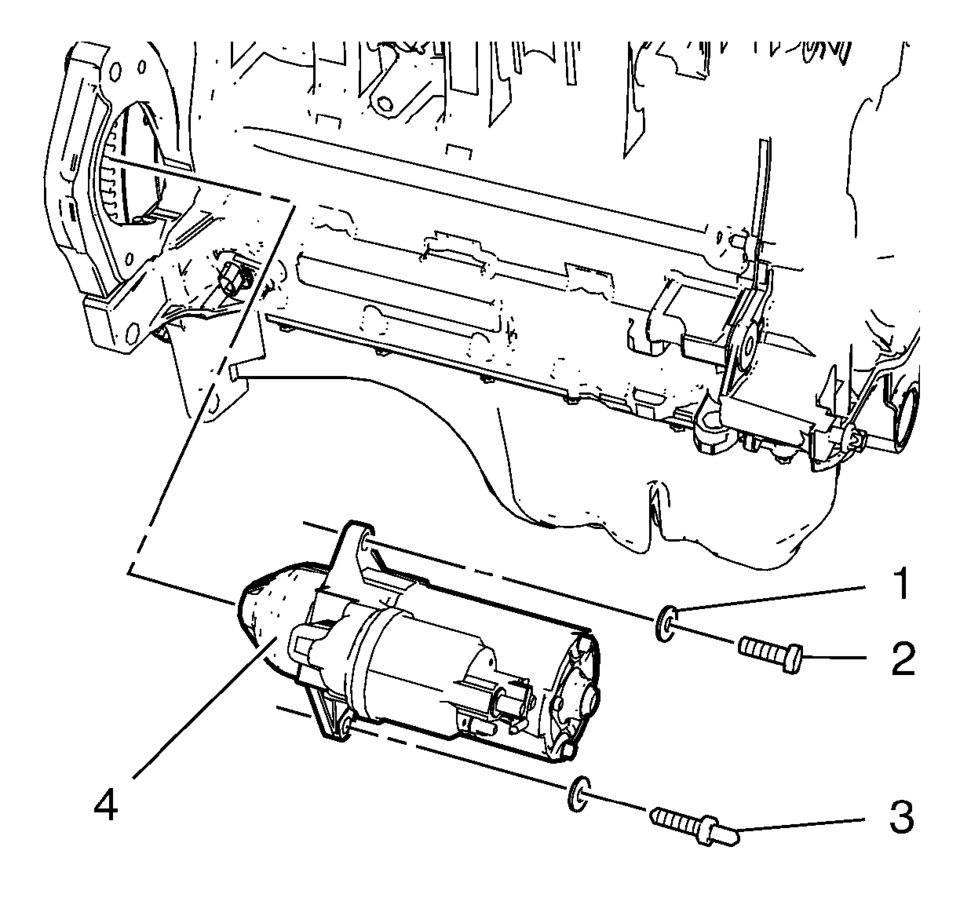

    Install the starter (4).
  1. Install the starter (4).
  2. Install the lower starter bolt stud (3) and if equipped the washer.
  3. Install the upper starter bolt (2) and if equipped the washer (1).
  4. Caution:

    Refer to Fastener Caution.

  5. Tighten the starter bolt and starter bolt stud to 25 Y (18 lb ft)

    .

Starting System Description and Operation
The starter motors are non-repairable starter motors. They have pole pieces that are arranged around the armature. Both solenoid windings are energized. The pull-in winding circuit is completed to ...

Starter Removal
Remove the upper starter bolt (2) and if equipped the washer (1). Remove the lower starter bolt stud (3) and if equipped the washer. Remove the starter (4). ...
