Chevrolet Sonic Repair Manual: Steering Column Lower Trim Cover Replacement
|

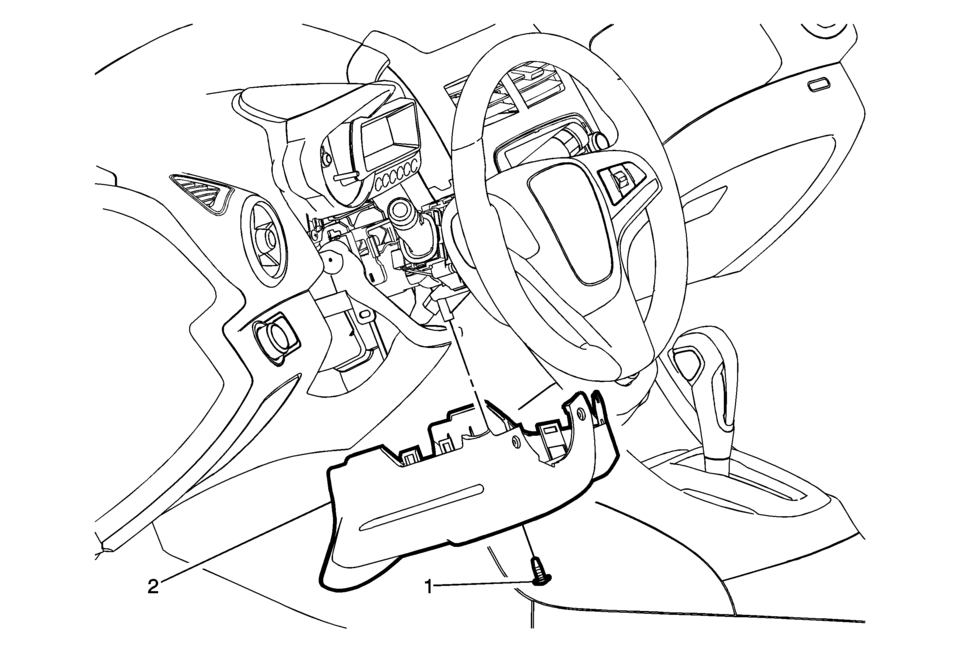

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement. |
|
|
1 |
Instrument Panel Steering Column Lower Trim Cover Fastener Caution: Refer to Fastener Caution. |
|
2 |
Instrument Panel Steering Column Lower Trim Cover Assembly |
Steering Angle Sensor Replacement
Steering Angle Sensor Replacement
Callout
Component Name
Preliminary Procedure
Remove the steering wheel airbag coil. Refer to ...
Steering Column Replacement
Removal Procedure
Caution: With wheels of the vehicle facing straight ahead,
secure the steering wheel utilizing steering column anti-rotation pin,
steering column lock, or ...
