Chevrolet Sonic Repair Manual: Temperature Control Cable Replacement (LHD)
|

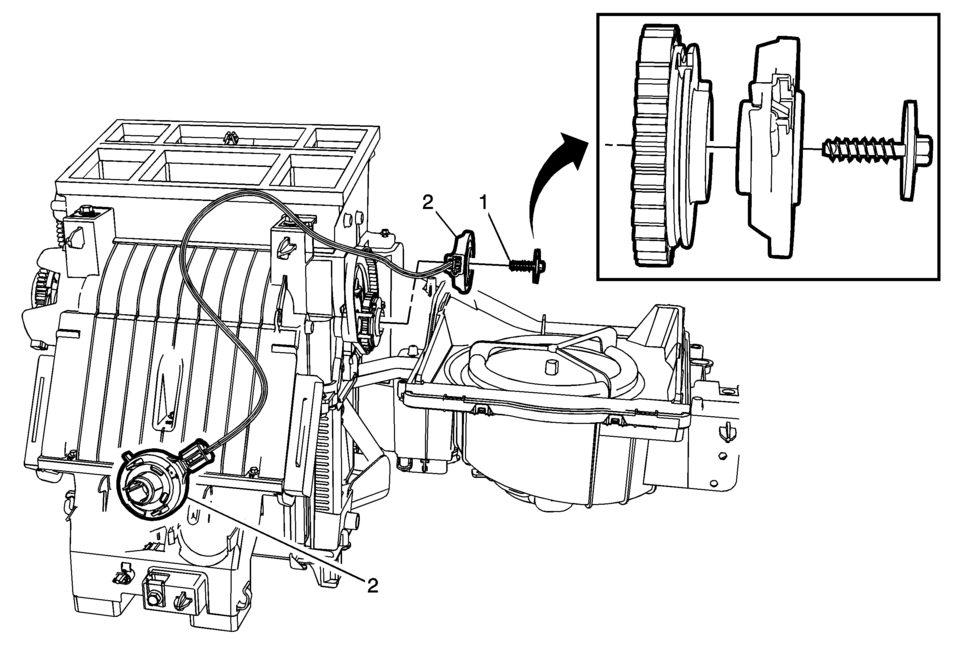

Callout |
Component Name |
|---|---|
Preliminary Procedures
|
|
|
1 |
Temperature Control Cable Retaining Screw Caution: Refer to Fastener Caution.
1.2 Y (11 lb in) |
|
2 |
Temperature Control Cable |
Sun Load Temperature Sensor Replacement
Sun Load Temperature Sensor Replacement
Callout
Component Name
1
Sun Load Temperature Sensor Bezel
2
...
Cooling
...
