Callout |
Component Name |
|---|---|
Preliminary Procedure
|
|
|
1 |

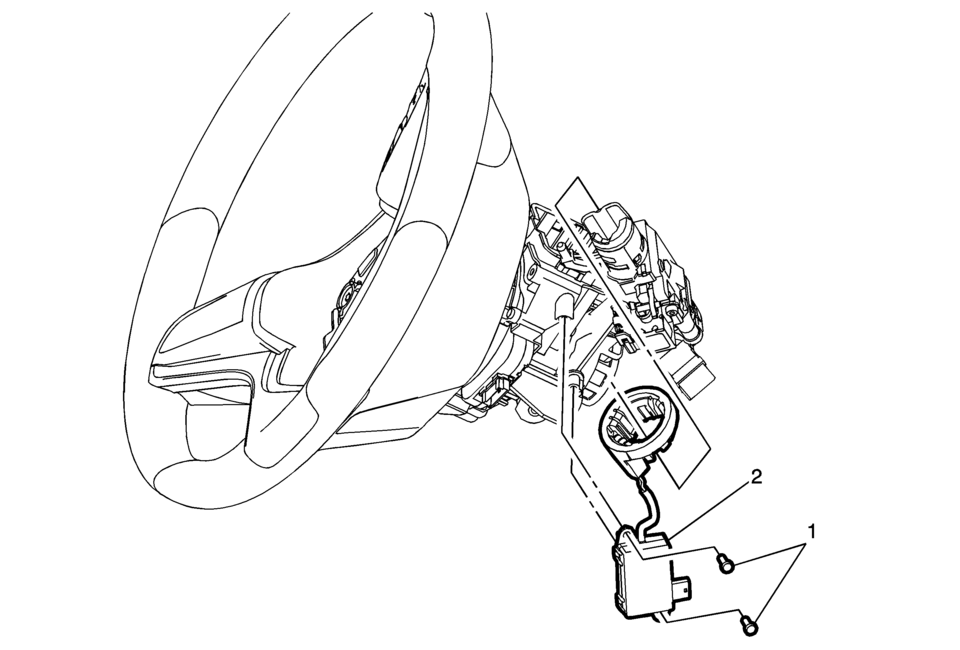

Theft Deterrent Module Bolt/Screw (Qty: 2) Caution: Refer to Fastener Caution. |
|
2 |
Theft Deterrent Module Procedure
|
