Warning
Exhaust gases can enter the vehicle if it is driven with the liftgate, hatch/trunk open, or with any objects that pass through the seal between the body and the hatch/trunk or liftgate. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.
If the vehicle must be driven with the liftgate or hatch/trunk open:
For more information about carbon monoxide, see Engine Exhaust.
To lock or unlock the trunk from the inside, press
or
on the central locking switch located
on the center stack.

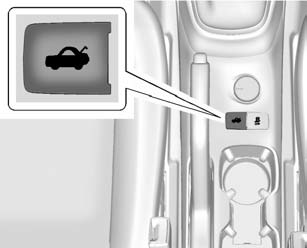

To open the trunk from inside of the vehicle:
.See Remote Keyless Entry (RKE) System Operation.

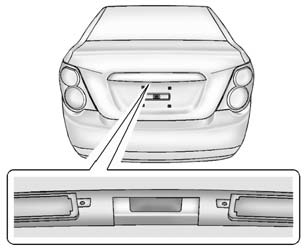

To open the trunk from outside of the vehicle:
on the RKE transmitter
or
on the RKE transmitter.
Doors
