Chevrolet Sonic Repair Manual: Valve Lifter Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / General / Valve Lifter Replacement

Special Tools

EN-845 Suction Device

For equivalent regional tools, refer to Special Tools.

Removal Procedure
  1. Remove the camshaft. Refer to Camshaft Replacement.


  2. Note:

    Mark the assignments.

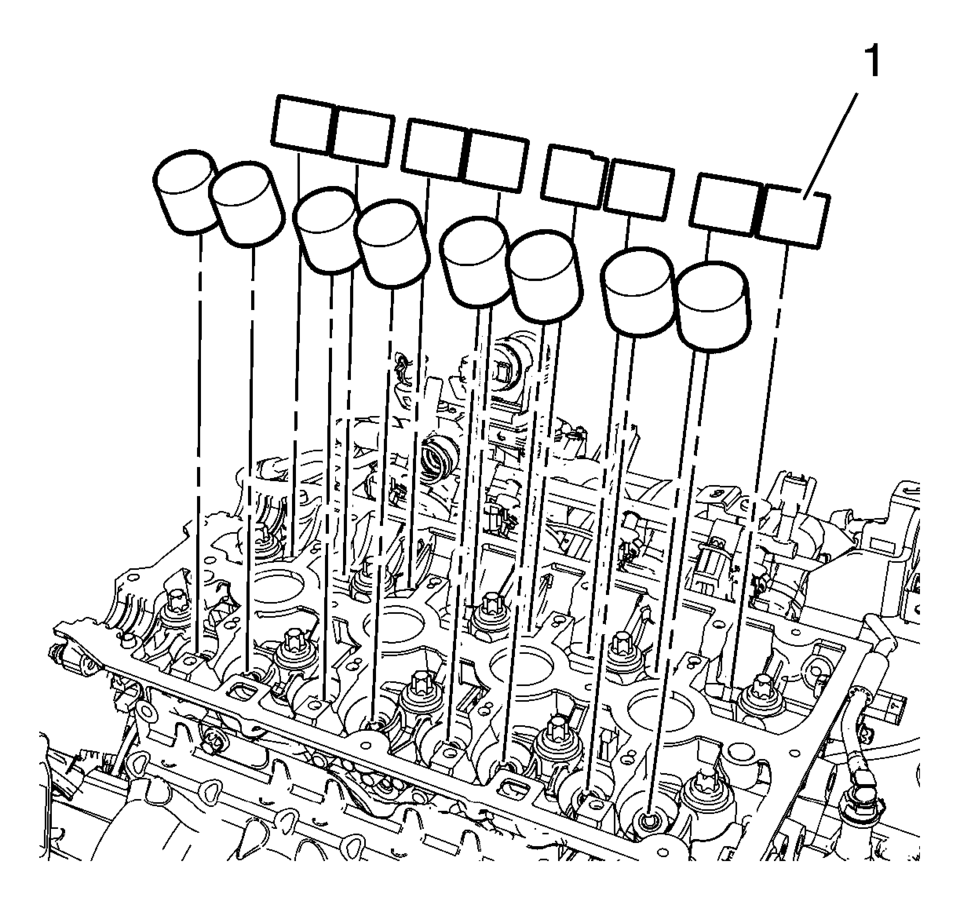

  3. Remove the valve lifter (1) use the EN-845 suction device .
Installation Procedure


    Note:

    Observe the correct assignment.

    Note:

    Coat the sliding surfaces with NEW engine oil.

  1. Install the valve lifter (1) use the EN-845 suction device .
  2. Install the camshaft. Refer to Camshaft Replacement.
