Windshield Washer Nozzle Hose Replacement

Callout

Component Name

Preliminary Procedure

Remove the hood insulator. Refer to Hood Insulator Replacement.

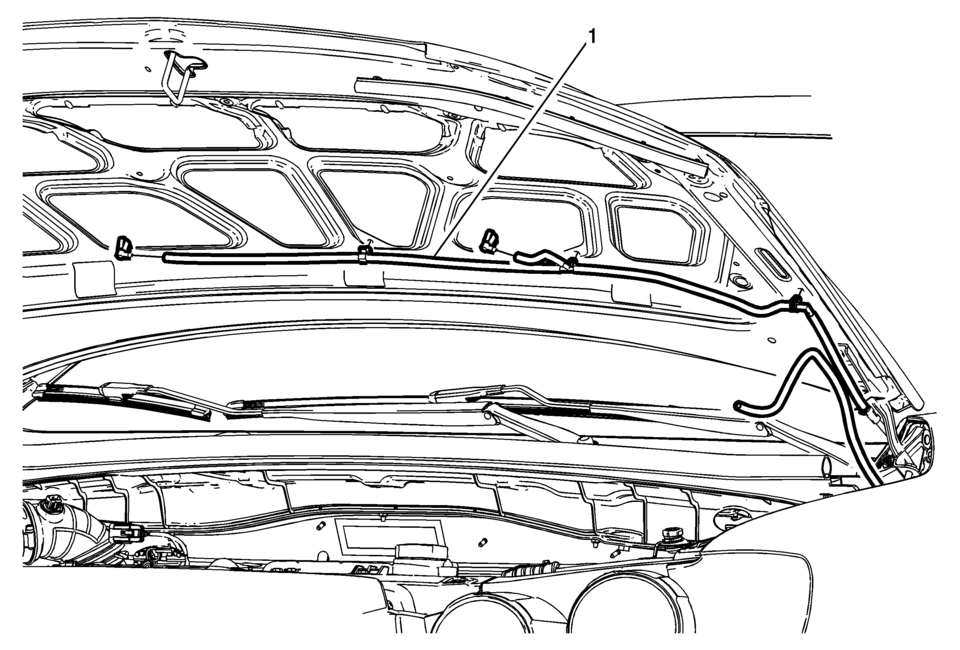

1

Windshield Washer Nozzle Hose

Procedure

  1. Disconnect the windshield washer hose at the front fender upper left hand bracket from the windshield washer solvent container pump hose.
  2. Disconnect the windshield washer hose retainer at the hood hinge.
  3. Disconnect all three washer hose retainers from the underside of the hood assembly.
  4. Disconnect the windshield washer hose at both windshield washer nozzle spouts.
  5. Remove the windshield washer hose from the vehicle.
