Windshield Wiper System Module Replacement

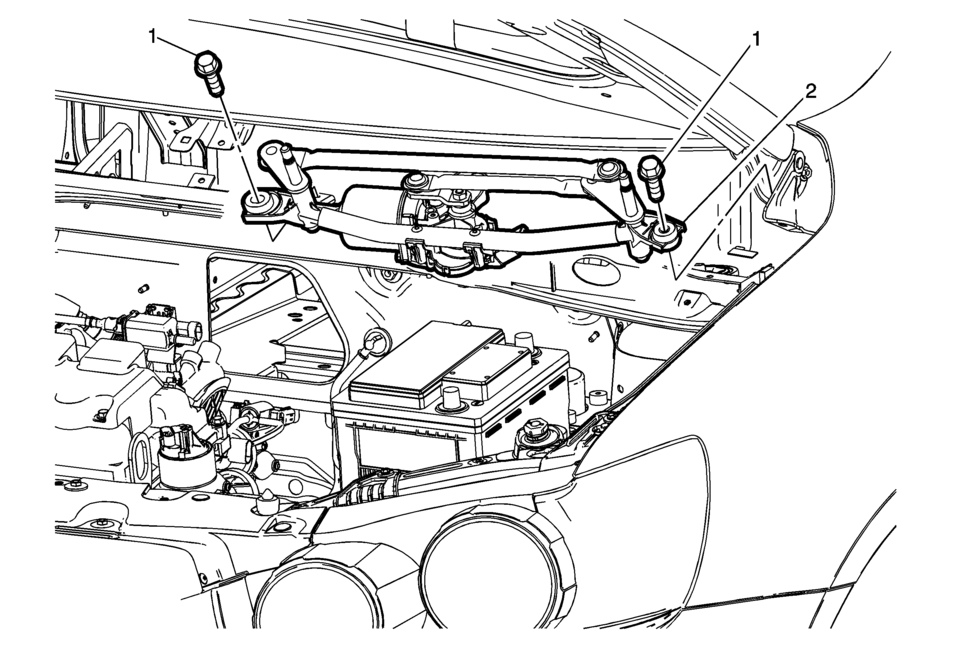

Callout

Component Name

Preliminary Procedures

  1. Open and support the hood assembly.
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement.

1

Windshield Wiper System Module Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


18?€‰Y (13?€‰lb?€‰ft)

2

Windshield Wiper System Module

Procedure

  1. Lift the wiper system module from the plenum brackets.
  2. Disconnect the electrical connector from the windshield wiper motor.
  3. Remove the windshield wiper system module from the plenum.
