Callout |
Component Name |
|---|---|
Preliminary Procedure
|
|
|
1 |

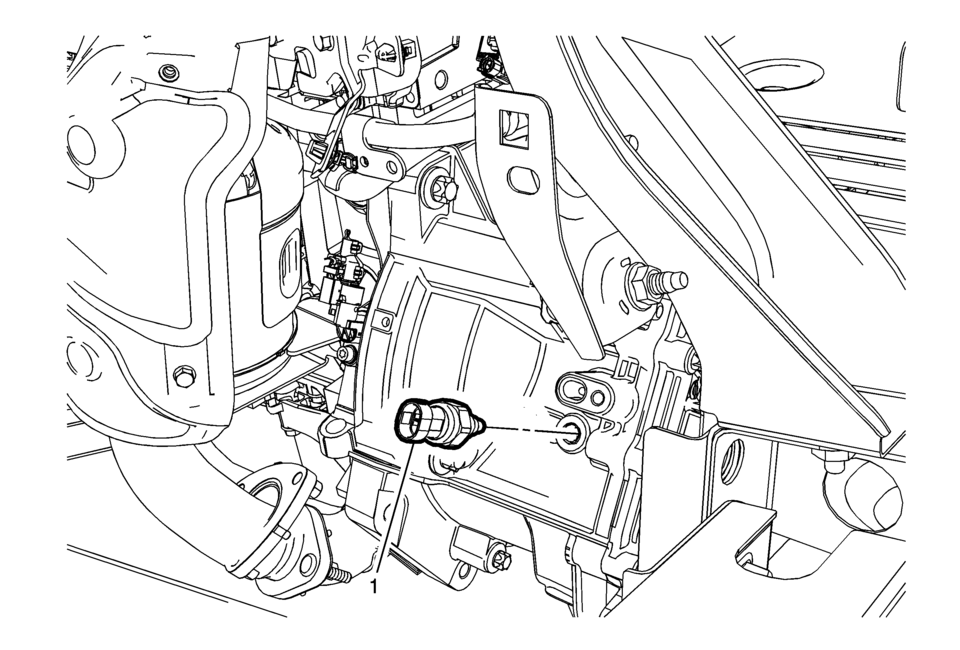

Backup Lamp Switch Caution: Refer to Component Fastener Tightening Caution. Procedure
Disconnect the electrical connector. Tighten
20 Y (15 lb ft) |
|
2 |
Backup Lamp Switch Washer Procedure
DISCARD the washer and install a NEW washer. |
General
Clutch and Differential Housing AssembleEngine Compartment Overview
1.4L L4 Engine
1. Engine Air Cleaner/Filter.
2. Engine Oil Dipstick. See Engine Oil.
3. Engine Cooling Fan (Out of View). See Cooling System.
4. Engine Oil Fill Cap. See Engine Oil.
5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System.
6. Brake/Clutch Fluid Reservoir. See Brakes ...
Tire Pressure Monitor System
The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check
tire pressure levels. The TPMS sensors monitor the air pressure in your tires and
transmit tire pressure readings to a receiver located in the vehicle.
Each tire, including the spare (if provided), should be check ...
Engine Oil Cooler Housing Removal
Remove the 2 engine oil cooler pipe bolts (1).
Remove the oil cooler pipe (2).
h.\.\,.\\..,v:..//
Remove the 5 engine oil cooler housing bolts (2).
Remove the engine oil cooler housing (1).
Remove the engine oil cooler inlet pi ...
