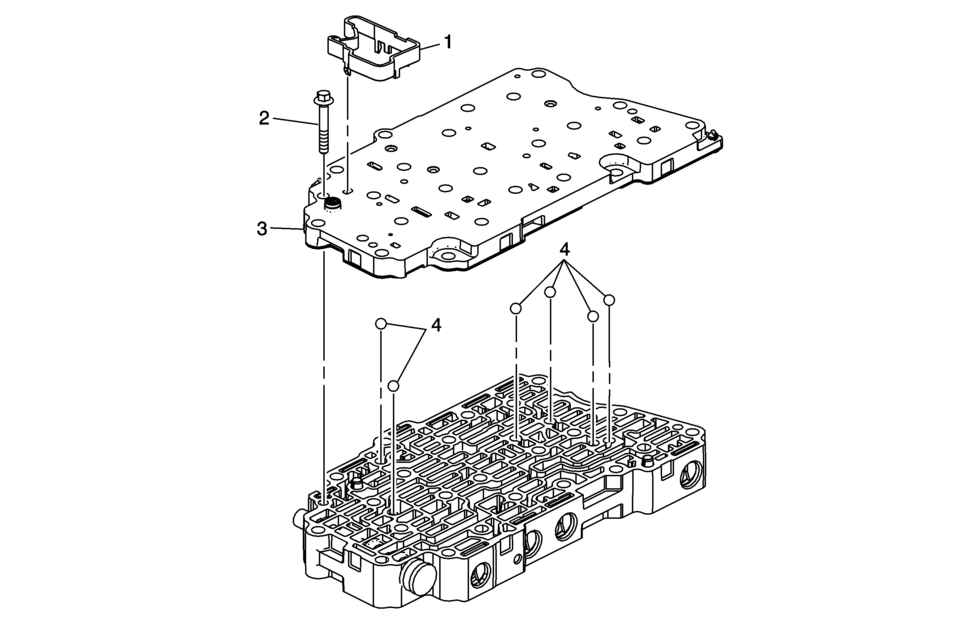

Callout |
Component Name |
|---|---|
|
1 |
Control Solenoid Valve Support |
|
2 |
Control Valve Body Bolt M5 x 40.5 (Qty: 1) |
|
3 |
Valve Channel Plate Note: Inspect the channel plate bolt pass through holes for damage or brinelling. Any damage will cause incorrect pressure switch operation. Replace as necessary. |
|
4 |
Valve Body Ball Check Valves (Qty: 6) |
Control Valve Body Assembly Disassemble (Gen 1)
