Caution

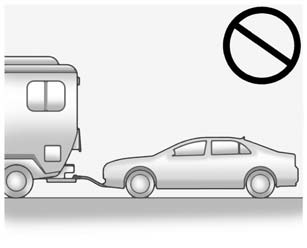

If the vehicle is towed with all four wheels on the ground, the drivetrain components could be damaged. The repairs would not be covered by the vehicle warranty. Do not tow the vehicle with all four wheels on the ground.
The vehicle was not designed to be towed with all four wheels on the ground. If the vehicle must be towed, a dolly should be used. See “Dolly Towing” that follows for more information.
Plastic Collar Quick Connect Fitting Service
Removal Procedure
Warning: Refer to Gasoline/Gasoline Vapors Warning.
Note: There are several types of plastic collar fuel and evaporative
emission quick connect fittings used on this vehicle.
Bartholomew (1)
Q Release (2)
Squeeze to Rele ...
Front End Upper Tie Bar Replacement
Front End Upper Tie Bar Replacement
Callout
Component Name
Preliminary Procedures
Disable the SIR system. Refer to SIR Disabling and Enabling.
Remove the front fascia. Refer to Front Bumper Fascia Replacement.
Rem ...
Drive Belt Tensioner Installation
Install the drive belt tensioner (1).
Install the upper drive belt tensioner bolt (2).
Install the lower drive belt tensioner bolt (3).
Caution: Refer to Fastener Caution.
Tighten the lower drive belt tensioner bolt (M8) to 22 Y (16 ...
