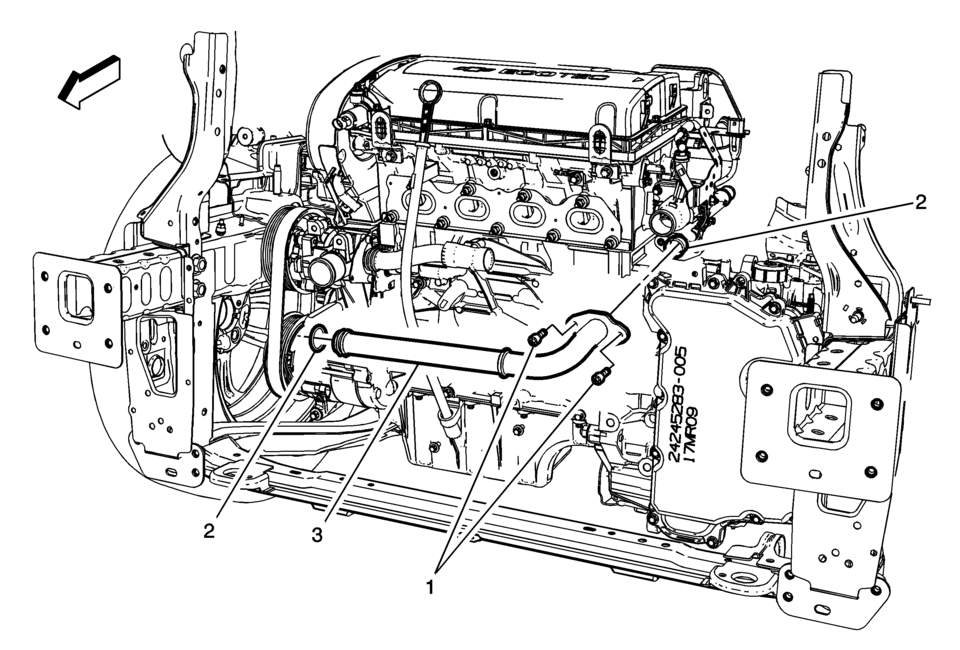

Engine Oil Cooler Pipe Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling.
  2. Remove the exhaust manifold with catalytic converter. Refer to Exhaust Manifold with Catalytic Converter Replacement.

1

Engine Oil Cooler Outlet Pipe Fasteners (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


8 Y (71 lb in)

2

Seals

Note:

Replace with NEW seals.

3

Engine Oil Cooler Outlet Pipe

Engine Oil Cooler Outlet Pipe Replacement (LUW)
