Chevrolet Sonic Repair Manual: Exhaust Camshaft Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Camshaft / Exhaust Camshaft Installation



    Note:

    Mind the markings on the camshaft bearing caps. Camshaft bearing caps should be installed in their original position.

  1. Lubricate camshaft and camshaft bearing caps with engine oil.

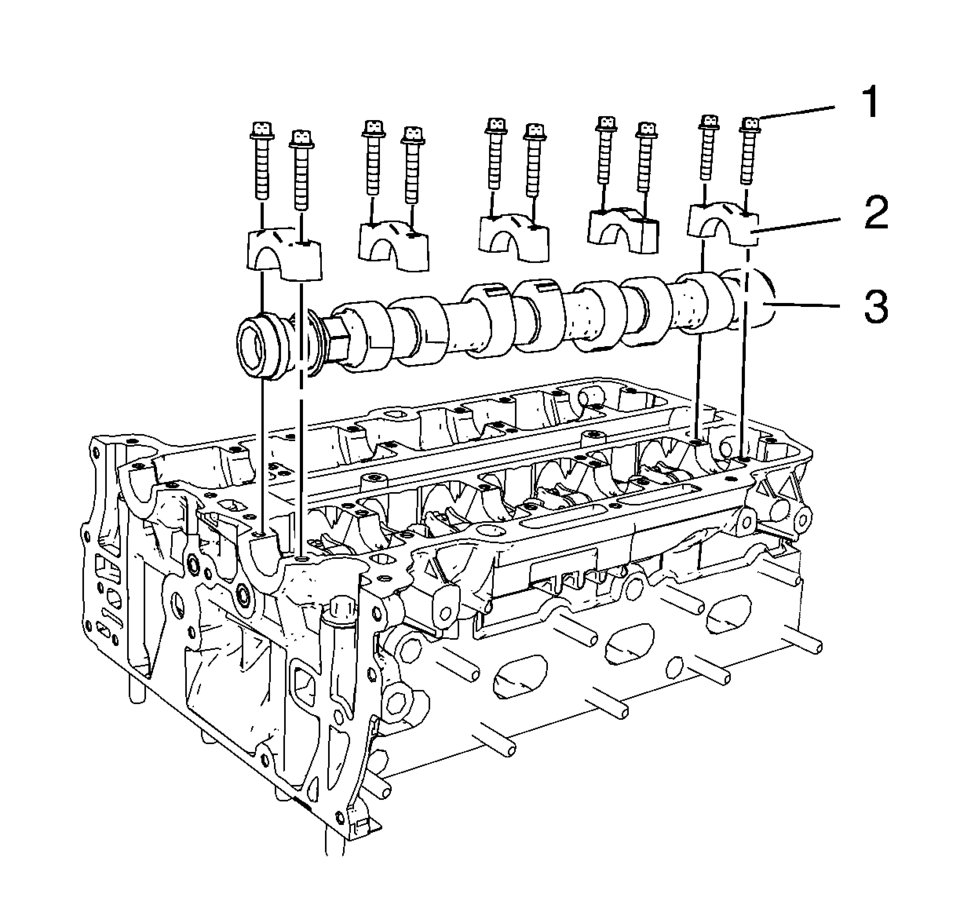

  2. Install the exhaust camshaft (3).
  3. Install the 5 camshaft bearing caps (2).
  4. Install the 10 camshaft bearing cap bolts (1) and handtighten.

  5. Caution:

    Refer to Fastener Caution.

    Note:

    Tighten the camshaft bearing cap bolts one turn at a time in order to avoid shape distortion of the camshaft.

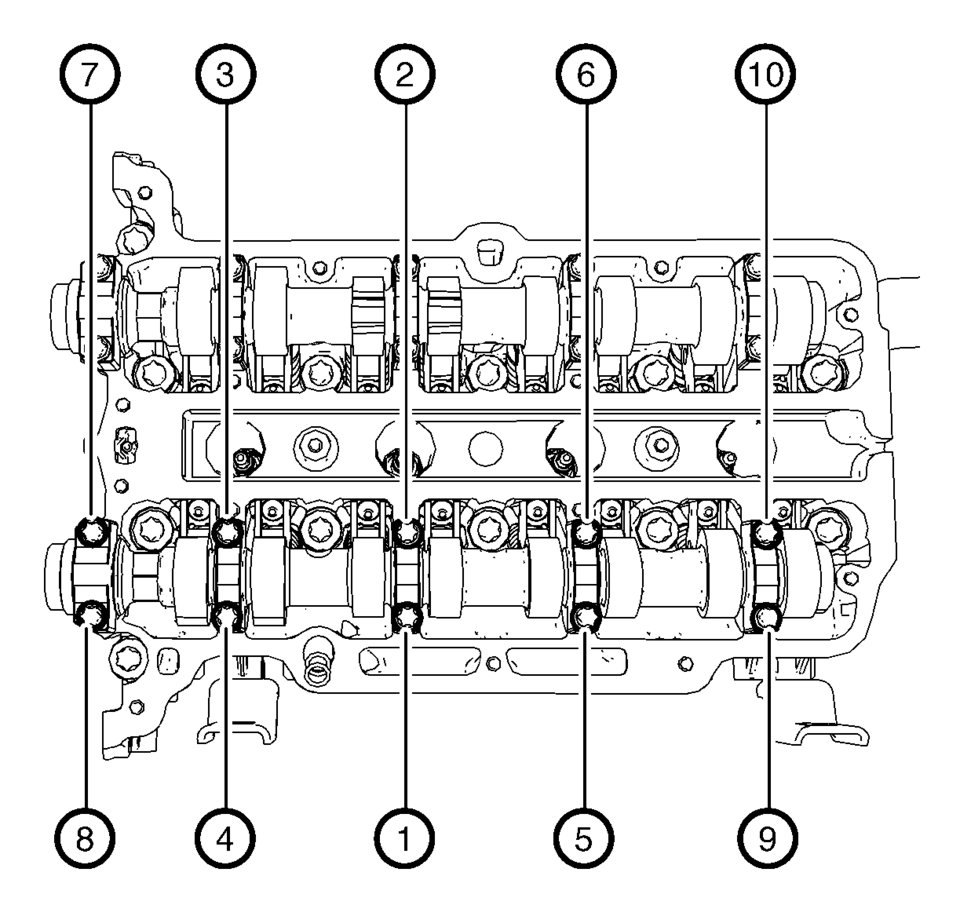

  6. Tighten the camshaft bearing cap bolts one turn at a time and in a spiral sequence as shown to  8 Y (71 lb in)

    .

Camshaft Replacement
Special Tools EN-422 Installer For equivalent regional tools, refer to Special Tools. Removal Procedure Note: Take extreme care to prevent any scratches, nicks or ...

Exhaust Camshaft Removal
Remove the camshaft bearing cap bolts in a spiral sequence as shown one turn at a time until there is no spring tension pushing on the camshaft. Note: Mind the markings on the ...
