Floor Rear Air Outlet Duct Replacement - Left Side

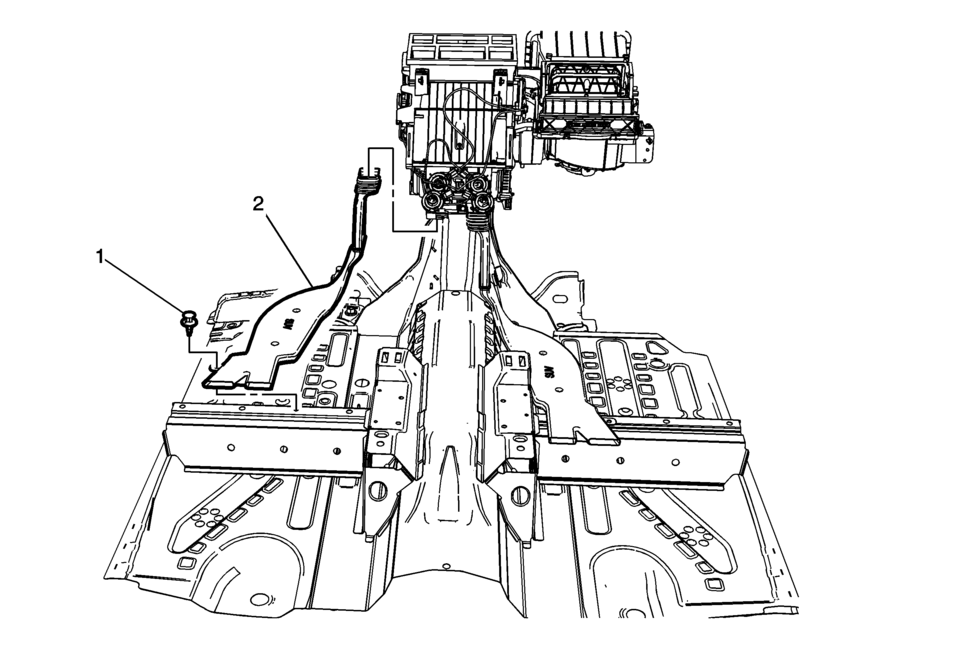

Callout

Component Name

Preliminary Procedure

Remove the floor panel carpet . Refer to Floor Panel Carpet Replacement.

1

Floor Rear Air Outlet Duct Push-In Fastener

2

Floor Rear Air Outlet Duct

Sunroof Air Deflector Replacement
Sunroof Air Deflector Replacement Callout Component Name Preliminary Procedure Remove the sunroof module. Refer to Sunroof Modu ...

Floor Rear Air Outlet Duct Replacement - Right Side
Floor Rear Air Outlet Duct Replacement - Right Side Callout Component Name Preliminary Procedure Remove the front floor carpet. ...
