Chevrolet Sonic Repair Manual: Floor Rear Air Outlet Duct Replacement - Right Side
|

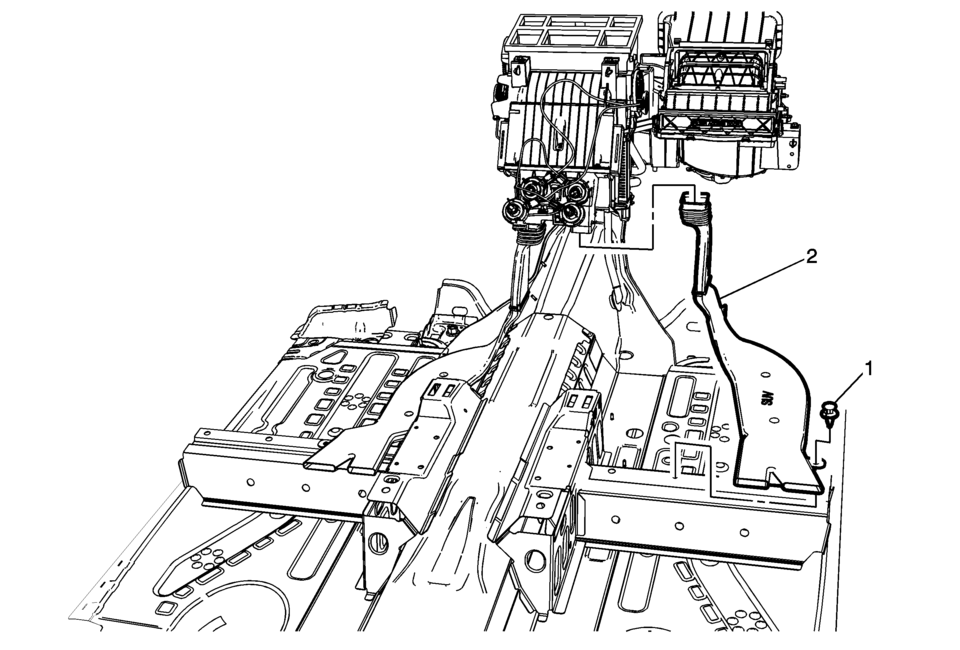

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front floor carpet. Refer to Floor Panel Carpet Replacement. |
|
|
1 |
Floor Rear Air Outlet Duct Fastener |
|
2 |
Floor Rear Air Outlet Duct Procedure
Transfer all necessary components. |
Floor Rear Air Outlet Duct Replacement - Left Side
Floor Rear Air Outlet Duct Replacement - Left Side
Callout
Component Name
Preliminary Procedure
Remove the floor panel carpet . ...
