Front Bumper Fascia Guide Replacement

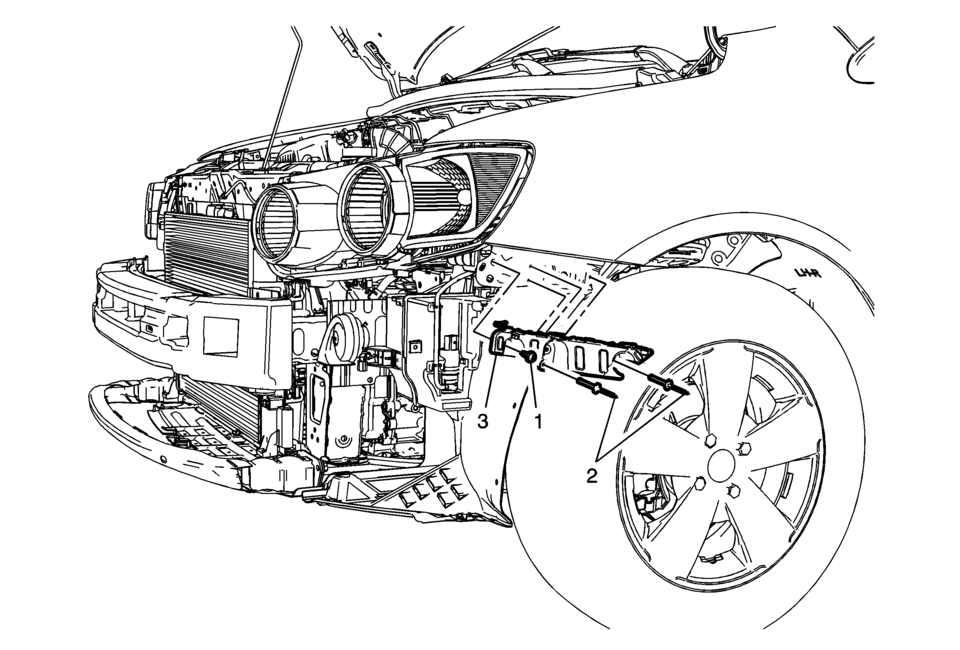

Callout

Component Name

Warning:

Refer to Eye Protection Warning.

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Headlamp Bolt

Caution:

Refer to Fastener Caution.

Tighten


10?€‰Y (89?€‰lb?€‰in)

2

Front Bumper Fascia Guide Rivet (Qty:?€‰2)

Special Tools

BO-594-A Hand Rivet Tongs

For equivalent regional tools, refer to Special Tools.

3

Front Bumper Fascia Guide

Procedure

Slide the guide forward to release the front retainer from the fender.
