Chevrolet Sonic Repair Manual: Front Bumper Fascia Opening Lower Cover Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Bumpers / Front Bumper / Front Bumper Fascia Opening Lower Cover Replacement

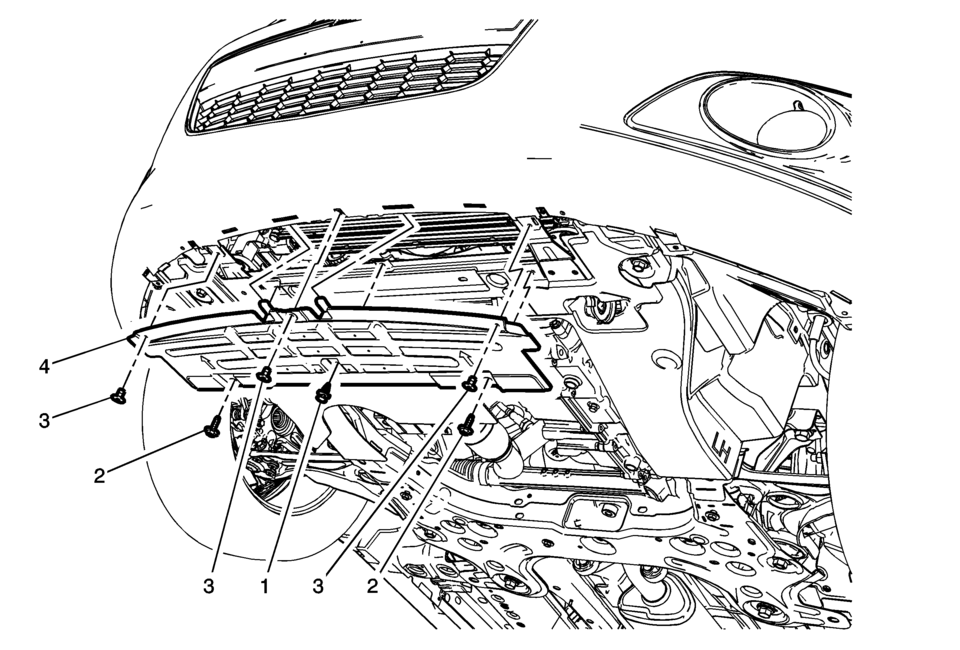

Front Bumper Fascia Opening Lower Cover Replacement

Callout

Component Name

1

Front Bumper Fascia Opening Lower Cover Push-In Retainer

2

Front Bumper Fascia Opening Lower Cover Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


22?€‰Y (16?€‰lb?€‰ft)

3

Front Bumper Fascia Opening Lower Cover Screw (Qty:?€‰3)

Tighten


2.5?€‰Y (22?€‰lb?€‰in)

4

Front Bumper Fascia Opening Lower Cover
