Chevrolet Sonic Repair Manual: Front Floor Console Cover Replacement (Automatic Transmission)

Chevrolet Sonic Repair Manual / Body / Body Interior / Dashboard Assembly / Front Floor Console Cover Replacement (Automatic Transmission)



Front Floor Console Cover Replacement

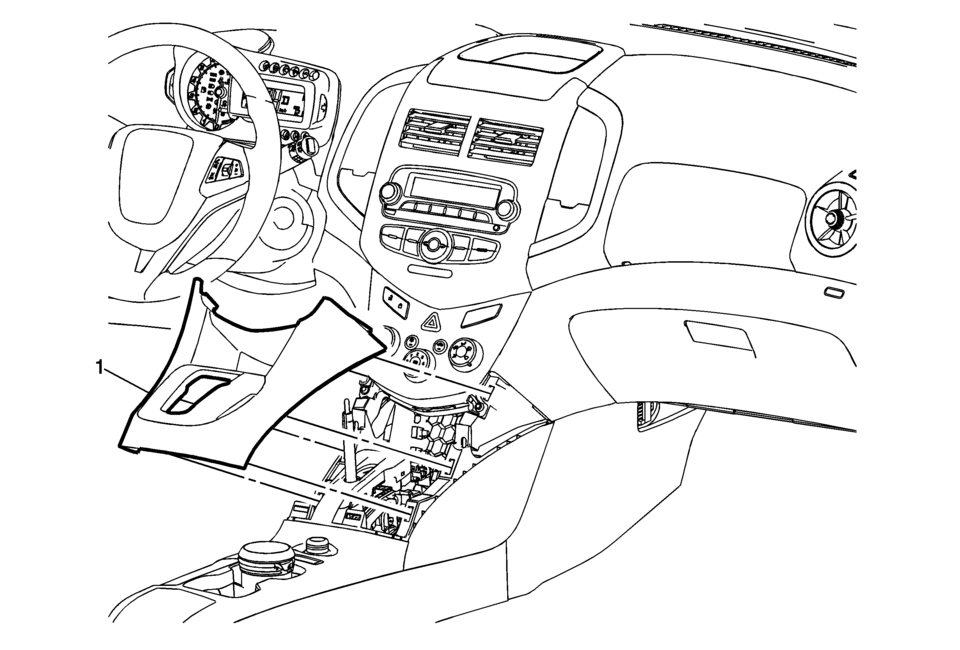

Callout

Component Name

1

Front Floor Console Cover Assembly

Procedures

  1. Apply the parking brake.
  2. Move the shifter from ?€?Park?€? to the ?€?Neutral?€? position.
  3. Use a flat-bladed plastic trim tool in order to release the retainers securing the console cover to the console assembly.
  4. Disconnect the electrical connections.
  5. When replacing the console cover, transfer all necessary components.
