Chevrolet Sonic Repair Manual: Front Floor Console Cup Holder Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Front Floor Console Cup Holder Replacement



Front Floor Console Cup Holder Replacement

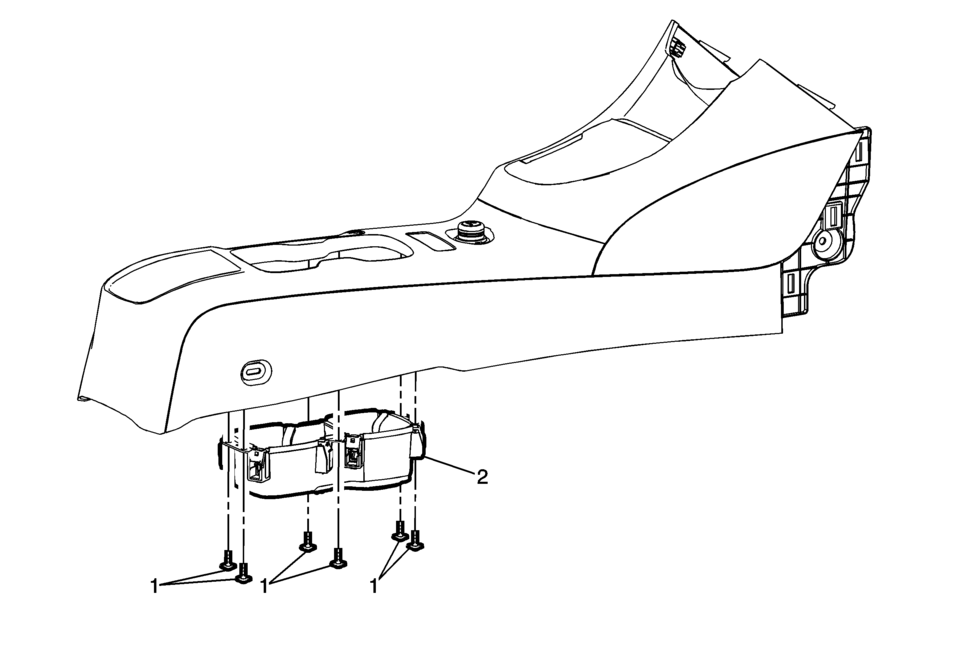

Callout

Component Name

Preliminary Procedure

Remove the front floor console assembly. Refer to Front Floor Console Replacement.

1

Front Floor Console Cup Holder Fasteners (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

2

Front Floor Console Cup Holder Assembly
