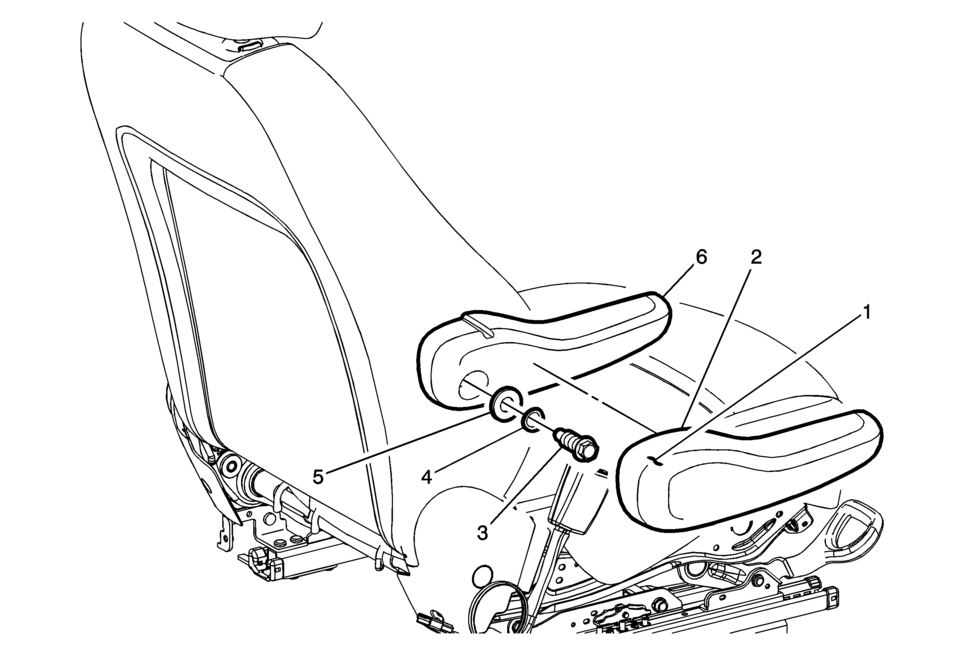

Front Seat Armrest Replacement

Callout

Component Name

1

Front Seat Armrest Cover Zipper

Procedure

Open the zipper to access the front seat armrest mounting bolt and to remove the armrest cover

2

Front Seat Armrest Cover

Procedure

Slide the armrest cover off the armrest assembly.

3

Front Seat Armrest Mounting Bolt

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y (33?€‰lb?€‰ft)

4

Front Seat Armrest Spring Washer

5

Front Seat Armrest Washer

6

Front Seat Armrest Assembly
