Chevrolet Sonic Repair Manual: Front Seat Back Recliner Handle Replacement
|

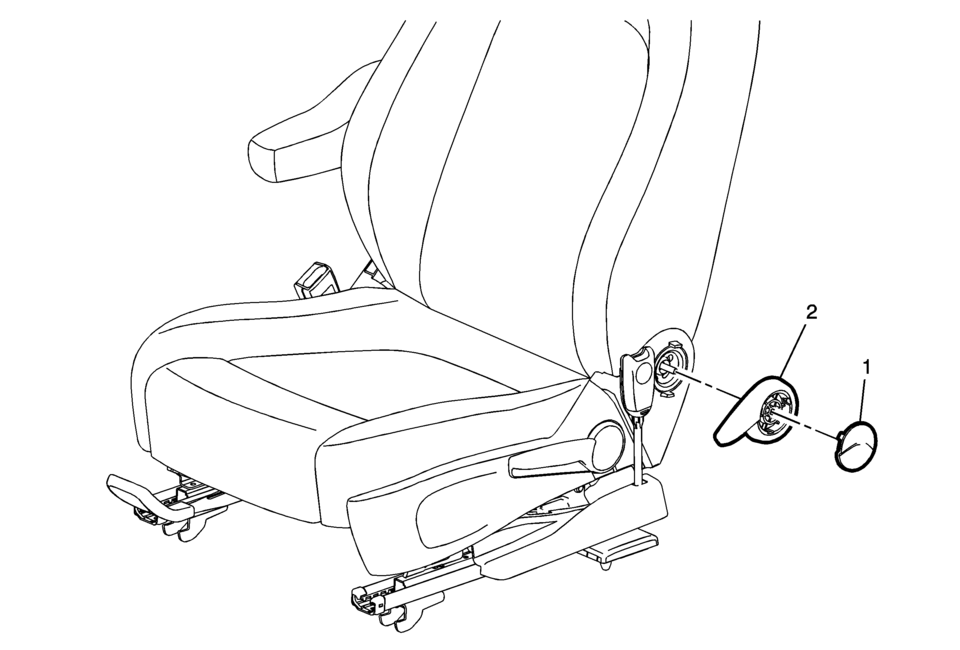

Callout |
Component Name |
|---|---|
|
1 |
Front Seat Recliner Handle Cover Cap Procedure
Use a flat-bladed tool to release the handle cover from the handle assembly. |
|
2 |
Front Seat Recliner Handle Procedure
Use a flat-bladed tool to release the handle from the seat. |
Front
...
Front Seat Cushion Cover and Pad Replacement
Front Seat Cushion Cover and Pad Replacement
Callout
Component Name
Warning: Refer to SIR Warning.
Preliminary Procedu ...
