Chevrolet Sonic Repair Manual: Front Side Door Window Rear Guide Replacement

Chevrolet Sonic Repair Manual / Body / Doors and Enclosures / Doors / Front Side Door Window Rear Guide Replacement



Front Side Door Window Rear Guide Replacement

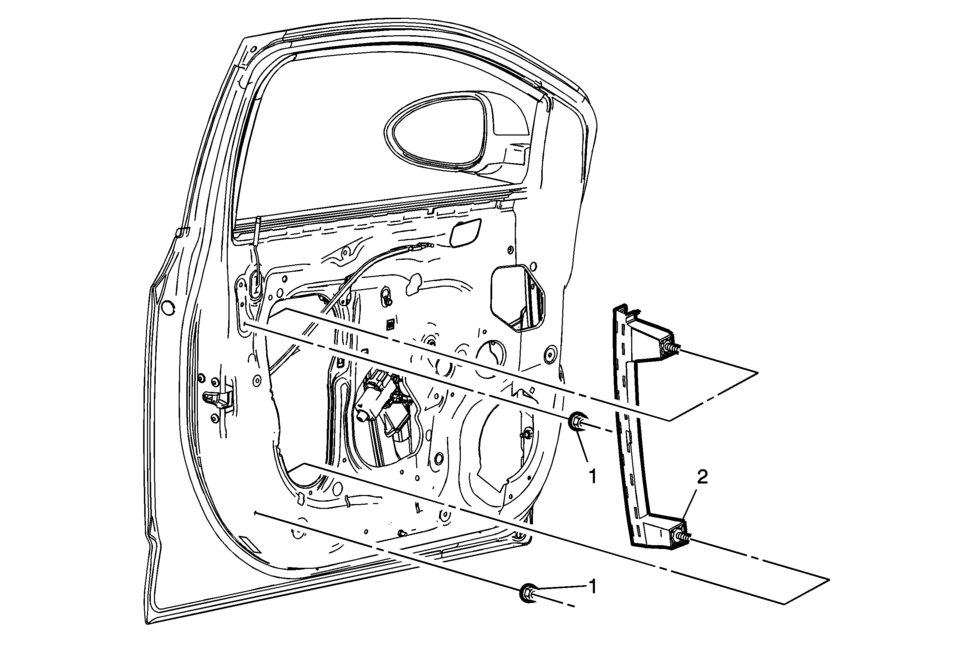

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer to Front Side Door Trim Replacement.

1

Front Side Door Window Rear Guide Nut (Qty?€‰:2)

Caution:

Refer to Fastener Caution.

Procedure

  1. Remove the front side door water deflector.
  2. Do not remove the window from the vehicle, raise the window to the fully up position.
  3. Pull the weatherstrip out from the inner channel of the guide.
Tighten


11?€‰Y (97?€‰lb?€‰in)

2

Front Side Door Window Rear Guide

Tip:

Inspect the window for proper operation before installing the trim panel.
