Chevrolet Sonic Repair Manual: Front Side Door Window Regulator Handle Replacement
|

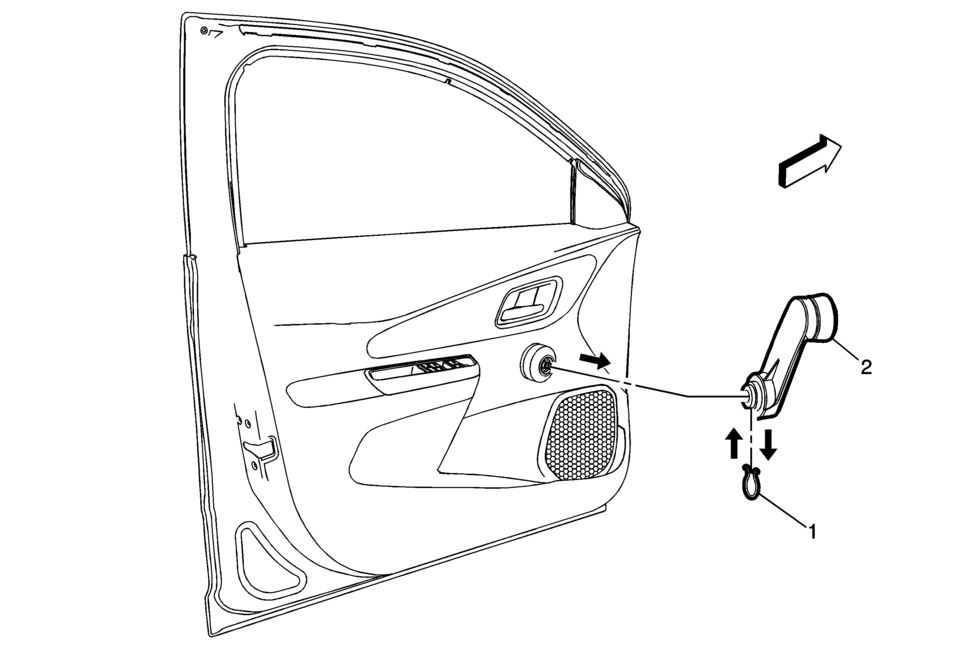

Callout |
Component Name |
|---|---|
|
1 |
Front Side Door Window Regulator Handle Clip Procedure
Use the appropriate tool, remove the clip from handle. |
|
2 |
Front Side Door Window Regulator Handle |
