Front Wheelhouse Liner Replacement

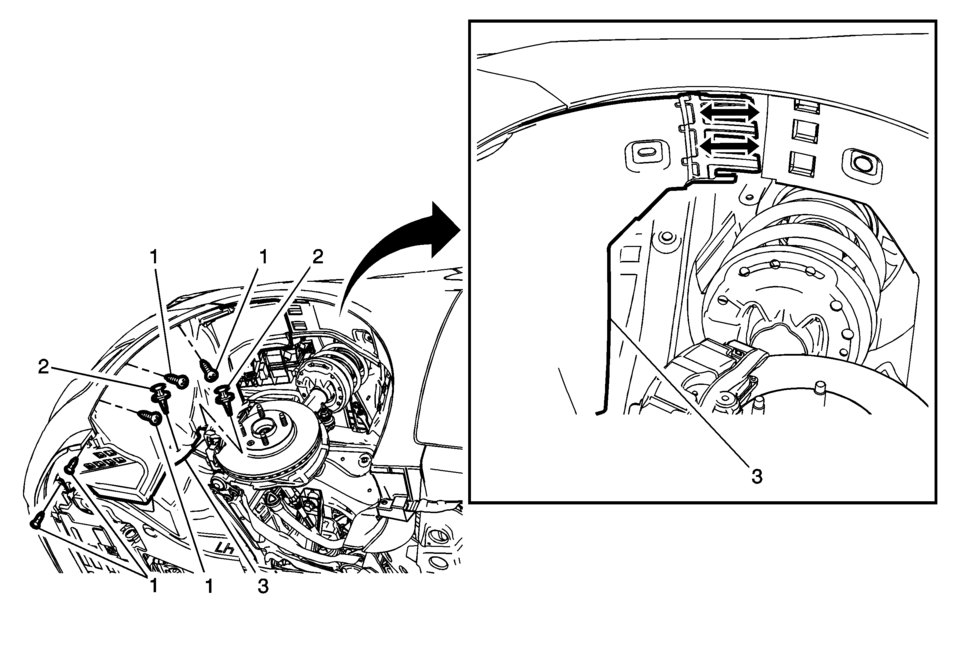

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Front Wheelhouse Liner Screw ?€“ Front (Qty:?€‰5)

Caution:

Refer to Fastener Caution.

Tighten


2.5?€‰Y?€‰(22?€‰lb?€‰in)

2

Front Wheelhouse Liner Push-In Retainer ?€“ Front (Qty:?€‰2)

3

Front Wheelhouse Liner ?€“ Front

Procedure

Disengage the upper interlocking retainers.
