Chevrolet Sonic Repair Manual: Special Tools

Illustration

Tool Number/ Description


CH-24319-B

CH-43631

J-24319-B

J-43631

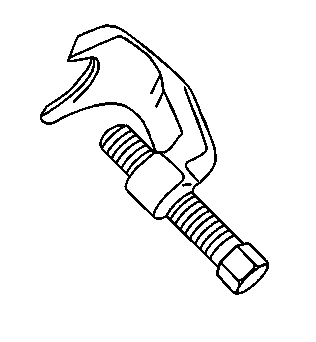

Ball Joint Remover


CH-50559

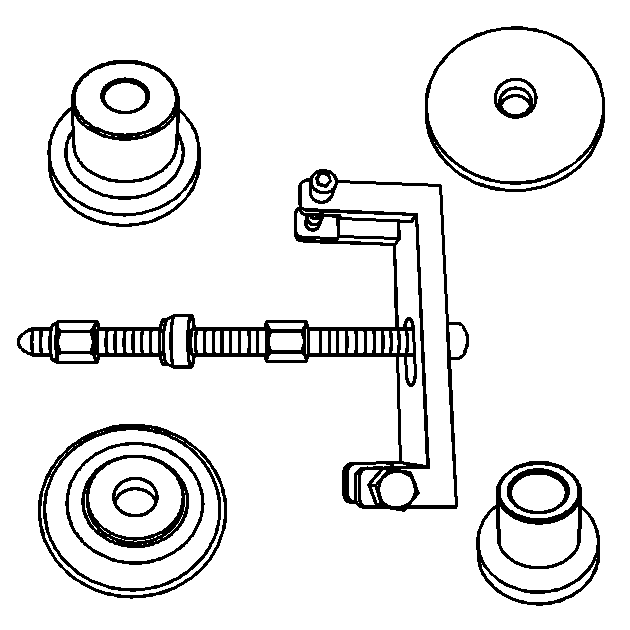

Wheel Hub / Bearing Remover / Installer Kit


CH-51035

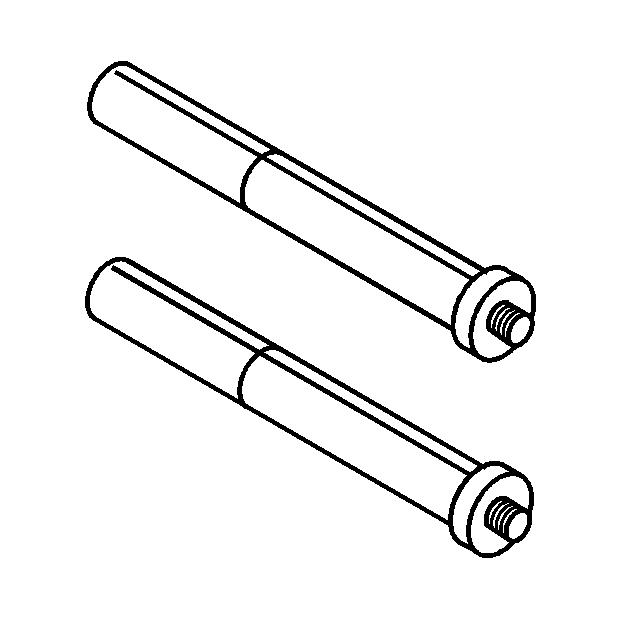

Rear Axle Supporter Adapter


CH-51095

J-39642

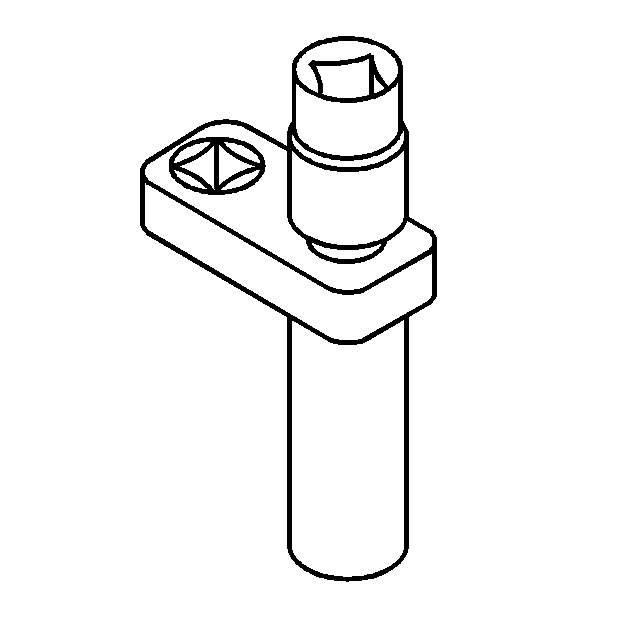

Shock Nut Removal Tool Set


DT-50187

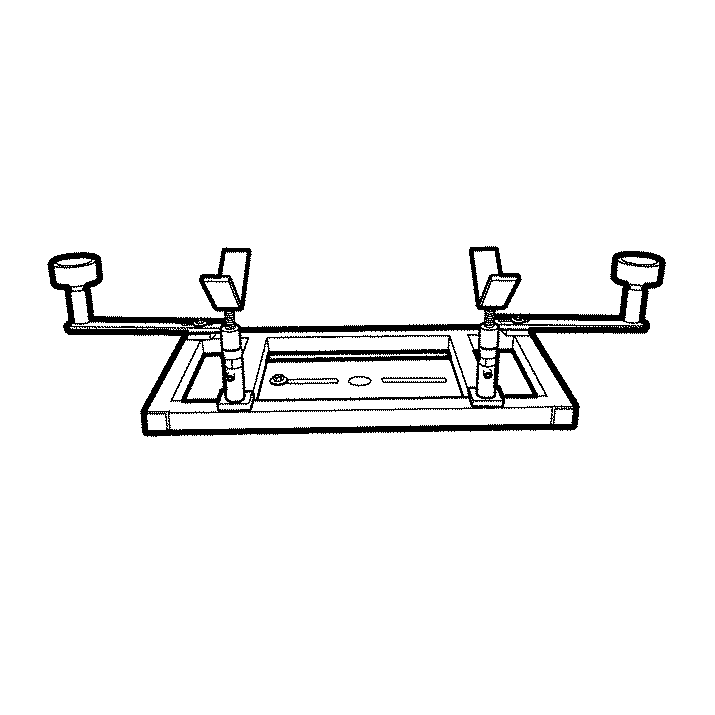

Rear Axle Supporter
