Chevrolet Sonic Repair Manual: Fuel Feed Pipe Replacement

Chevrolet Sonic Repair Manual / Powertrain / Internal Combustion Powertrain Control / Engine Control / General / Fuel Feed Pipe Replacement

Removal Procedure

    Remove the fuel feed pressure sensor. Refer to Fuel Pressure Sensor.-
  1. Remove the fuel feed pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe.

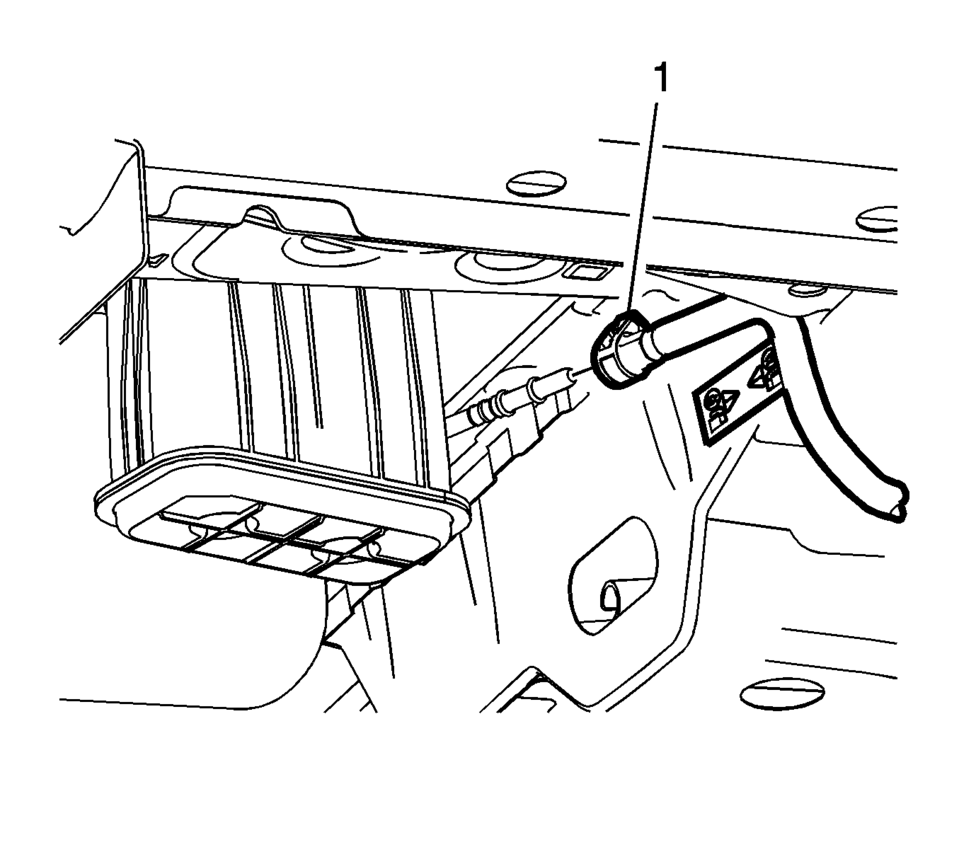

  2. Disconnect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.

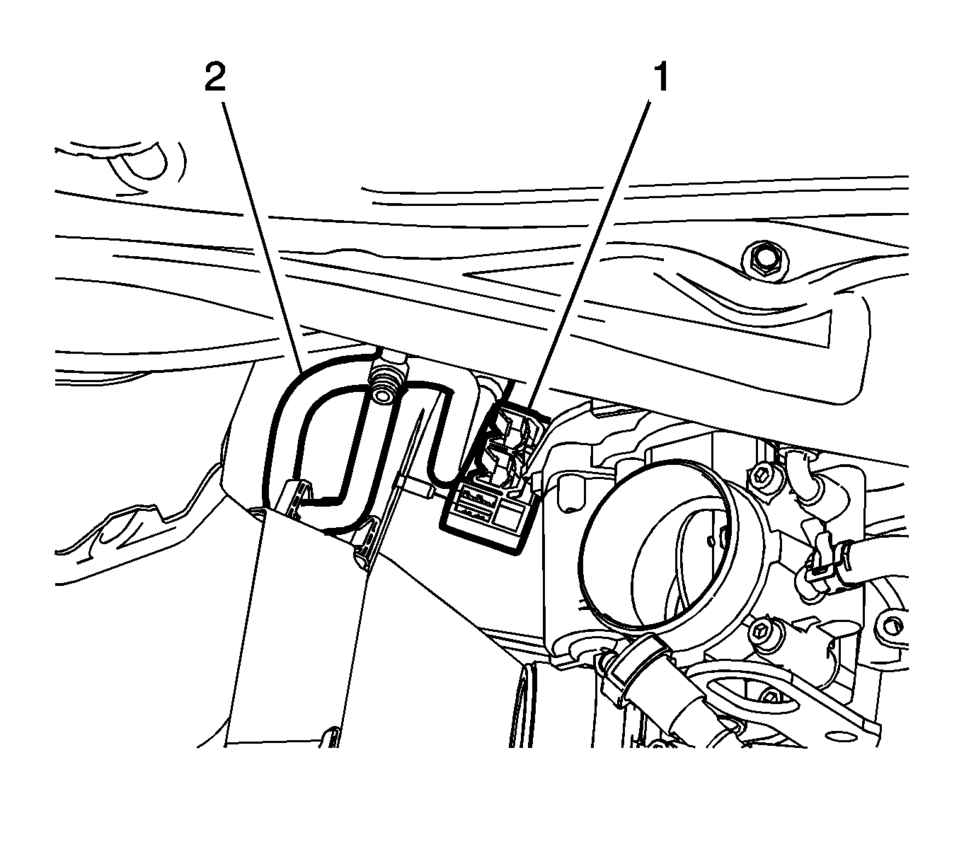

  3. Remove the plastic retainer (1) and disconnect the fuel feed pipe (2).

  4. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle.

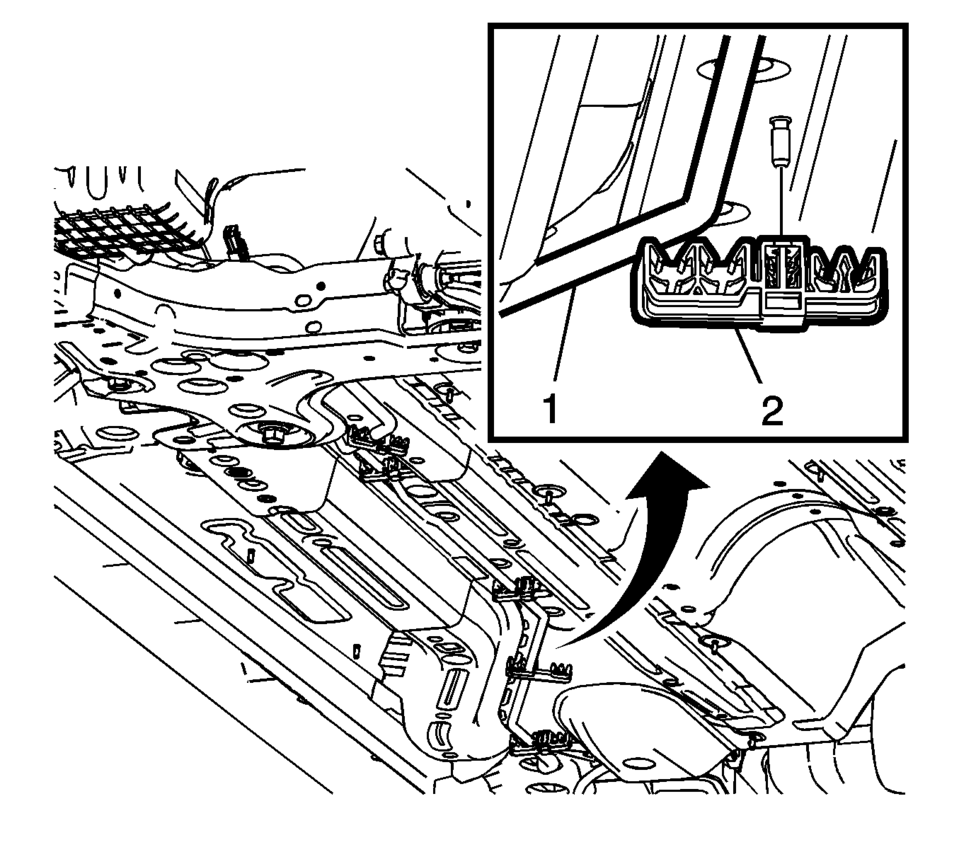

  5. Disconnect the fuel feed pipe (1) from the plastic retainers (2).

  6. Disconnect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.
  7. Remove the fuel feed pipe.
Installation Procedure

    Install the fuel feed pipe.
  1. Install the fuel feed pipe.
  2. Connect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.


  3. Connect the fuel feed pipe (2) to the plastic retainers (1).

  4. Connect the fuel feed pipe (2) and install the plastic retainer (1).
    5. .-
  5. Connect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.
  6. Install the fuel feed pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe.
