Chevrolet Sonic Repair Manual: Fluid Pump Selective Measurement



Fluid Pump Selective Measurement

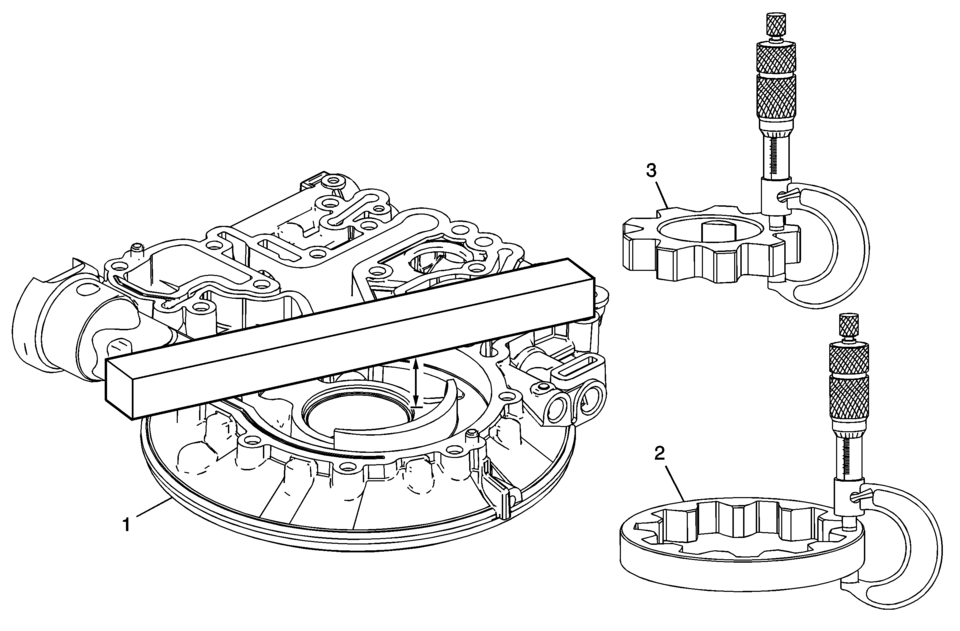

Callout

Component Name

1

A/Trans Fluid Pump Body

Note:

Measure the distance from the bottom of a gauge bar to the bottom of the pump rotor cavity. Refer to Fluid Pump Selective Specifications.

Special Tools

GE 34673 Flat Gauge Bar or equivalent

2

A/Trans Fluid Pump Driven Gear

Note:

Refer to Fluid Pump Selective Specifications to select the correct gear.

3

A/Trans Fluid Pump Drive Gear

Note:

Refer to Fluid Pump Selective Specifications to select the correct gear.
