Chevrolet Sonic Repair Manual: Generator Installation

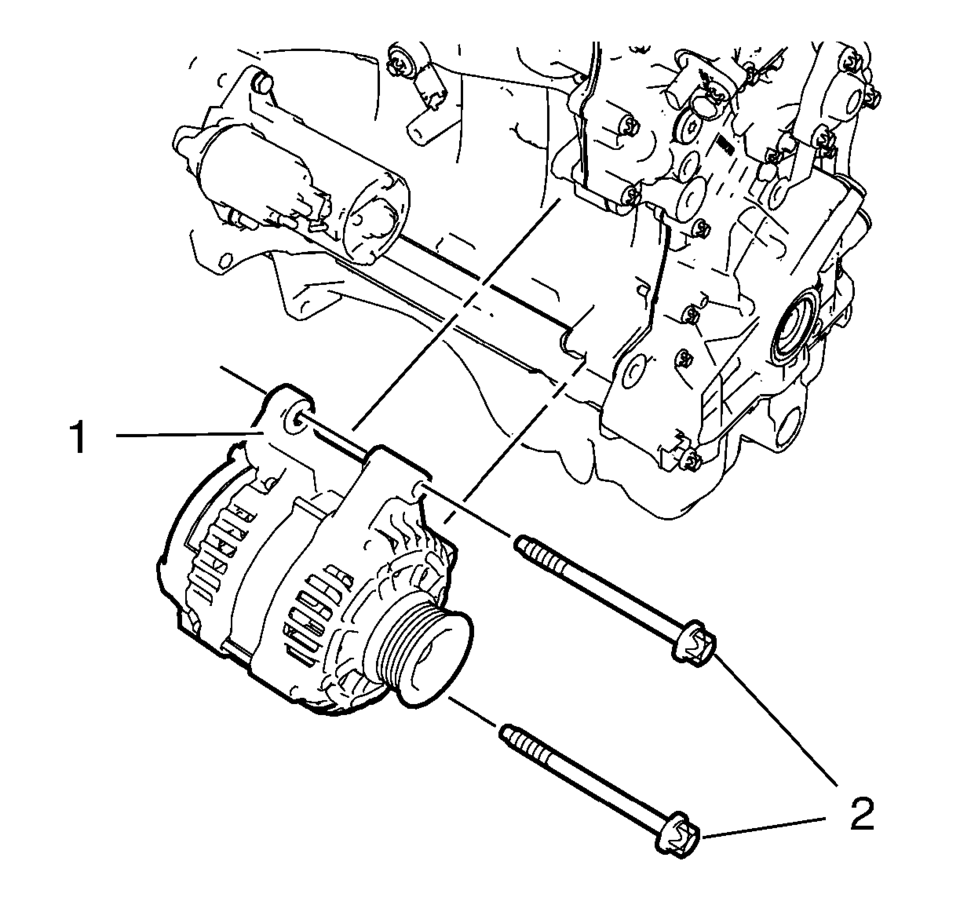

- Install the generator (1).
- Install the 2 generator bolts (2) and tighten to 35 Y (26 lb ft)
.
Caution:
Refer to Fastener Caution.
Engine Replacement (Manual Transmission)
Special Tools
J-45859 Wheel Drive Shaft Remover .
CH-807 Closure Plugs .
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the battery and b ...
Generator Removal
Remove the 2 generator bolts (2).
Remove the generator (1).
...
