Headlamp Bulb Replacement

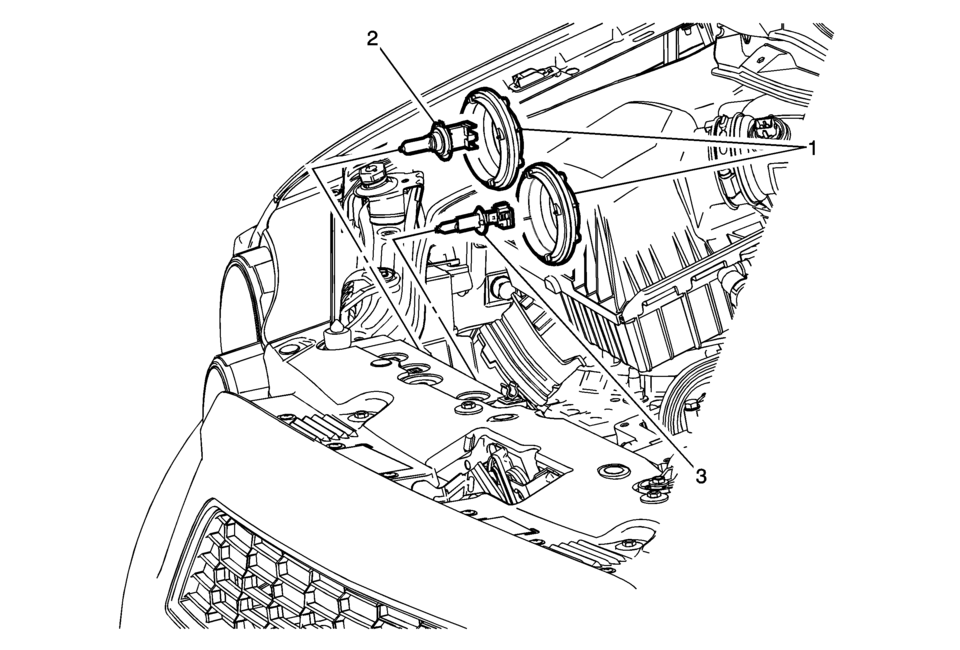

Callout	Component Name
Preliminary Procedure Open and support the hood assembly.
1	Accessory Bulb Cover?€‰(Qty:?€‰2)
2	Warning: Refer to Halogen Bulb Warning. Headlamp Bulb?€‰(Low Beam) Procedure Disconnect the electrical connector from the bulb socket. Rotate the bulb socket and remove from the headlamp housing.
3	Headlamp Bulb?€‰(High Beam) Procedure Disconnect the electrical connector from the bulb socket. Rotate the bulb socket a quarter turn and remove from the headlamp housing.

Headlamp Bracket Replacement

Headlamp Bracket Replacement Callout Component Name Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper ...

Headlamp Housing Bracket Replacement

Headlamp Housing Bracket Replacement Callout Component Name Preliminary Procedure Remove the front bumper fascia. Refer to Fron ...
