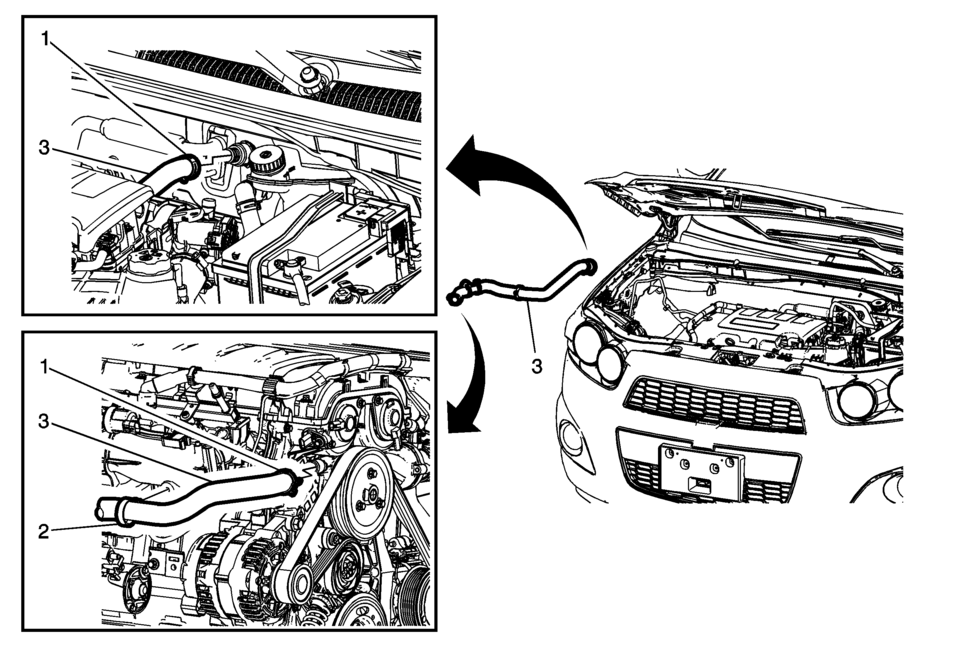

Heater Outlet Hose Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement.

1

Heater Outlet Hose Clamp (Qty: 2)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, refer to Special Tools.

2

Heater Outlet Hose Retainer

3

Heater Outlet Hose
