Chevrolet Sonic Repair Manual: Hood Insulator Replacement
|

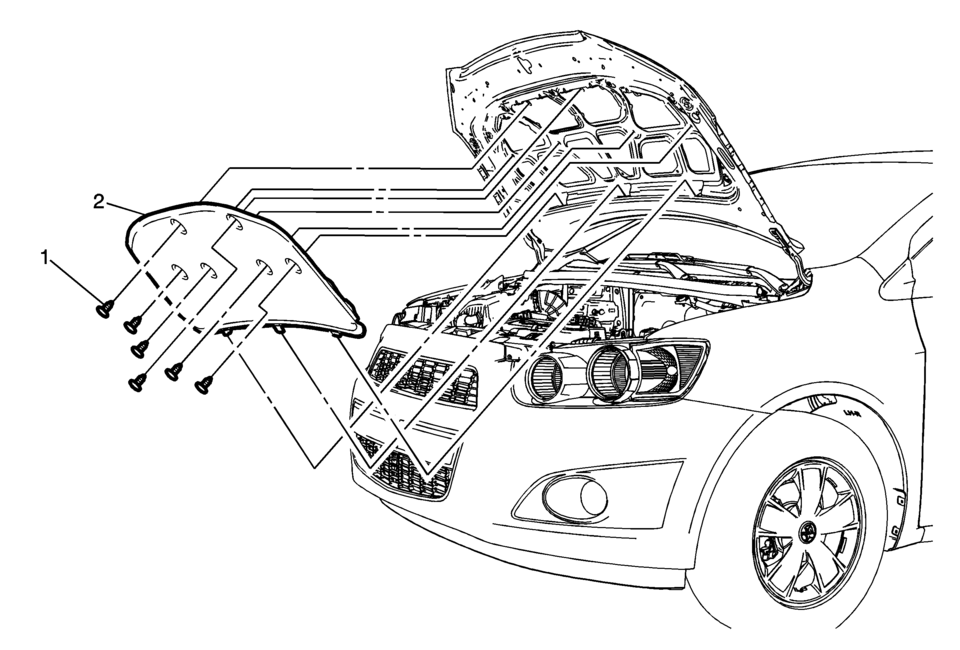

Callout |
Component Name |
|---|---|
|
1 |
Hood Insulator Plastic Retainer (Qty:?€‰6) |
|
2 |
Hood Insulator Procedure
Ensure the 3 integral tabs are secured to the hood. |
Hood Hinge Replacement
Hood Hinge Replacement
Callout
Component Name
Preliminary Procedures
Remove the hood. Refer to Hood Replacement.
Remove the fr ...
