Inside Rearview Mirror Replacement

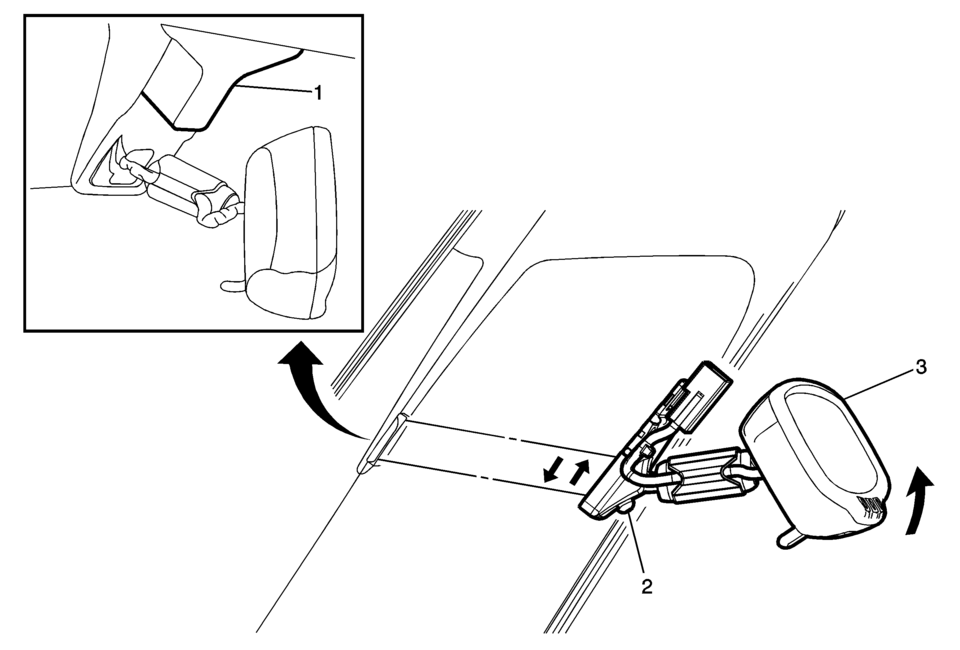

Callout

Component Name

1

Inside Rearview Mirror Cover

Procedure

  1. Remove the wire harness cover, sliding the cover upward releasing the cover from the support.
  2. Disconnected the connector from the mirror base.

2

Inside Rearview Mirror Screw

Caution:

Refer to Fastener Caution.

Procedure

  1. Adjust the mirror to the full upward position, loosen the screw at the base in order to remove the mirror from the button.
  2. Slide the mirror in an upward motion in order to remove.
Tighten


2?€‰Y?€‰(18?€‰lb?€‰in)

3

Inside Rearview Mirror
