Chevrolet Sonic Repair Manual: Instrument Cluster Upper Bezel Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Dashboard Assembly / Instrument Cluster Upper Bezel Replacement



Instrument Cluster Upper Bezel Replacement

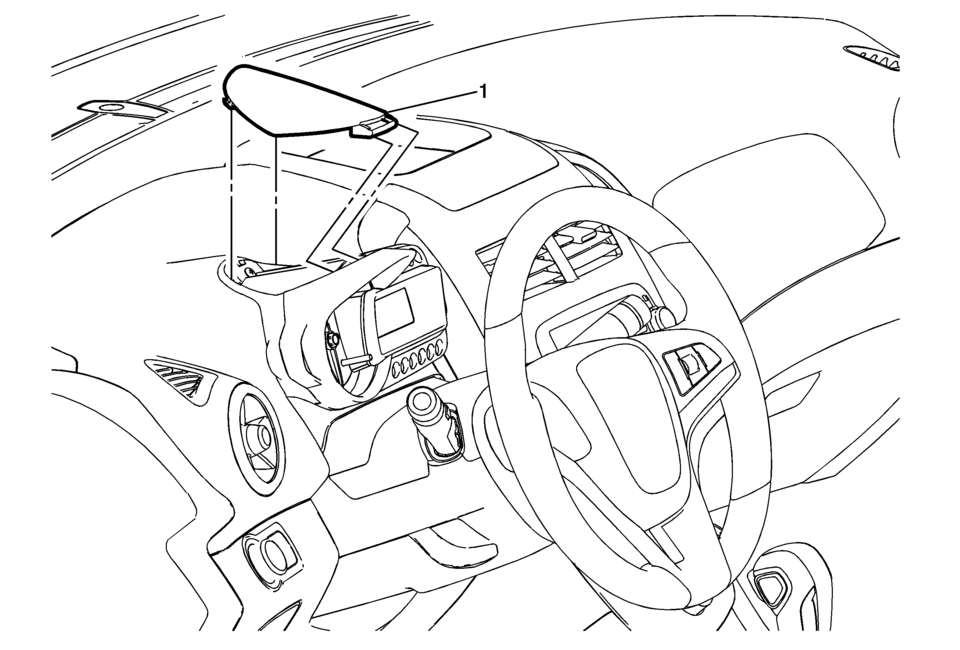

Callout

Component Name

1

Instrument Panel Cluster Upper Bezel

Procedures

Use a flat bladed plastic trim tool in order to disengage the retainers securing the instrument panel cluster upper bezel to the instrument cluster assembly.
