Instrument Panel Center Air Outlet Replacement

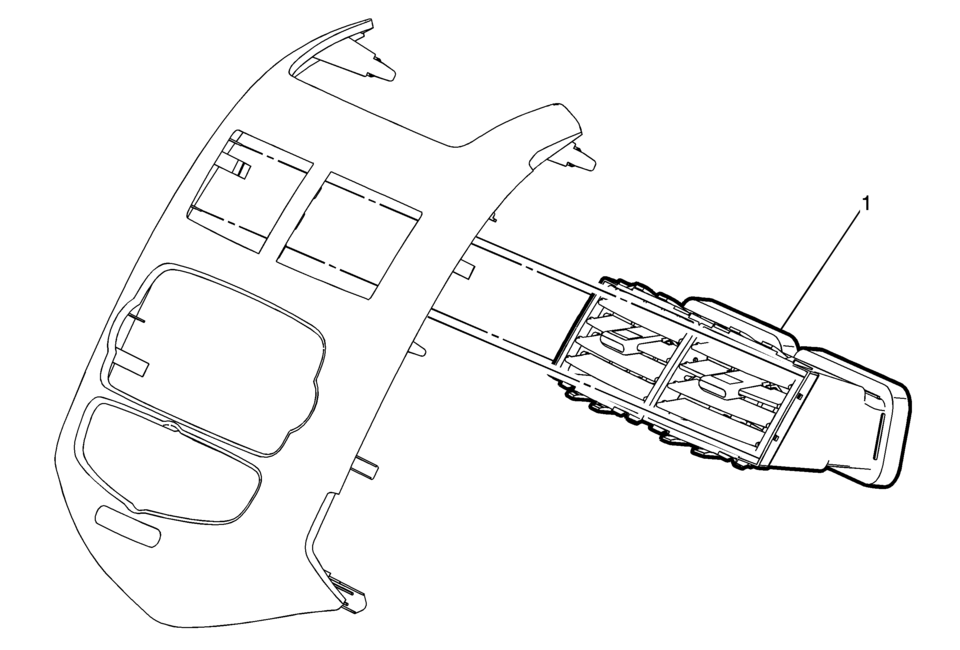

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement.

1

Instrument Panel Center Air Outlet Assembly

Procedure

Unsnap the instrument panel center air outlet from the center molding assembly.
