Chevrolet Sonic Repair Manual: Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)

Chevrolet Sonic Repair Manual / Electrical / Fuses Junctions and Relays / Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)

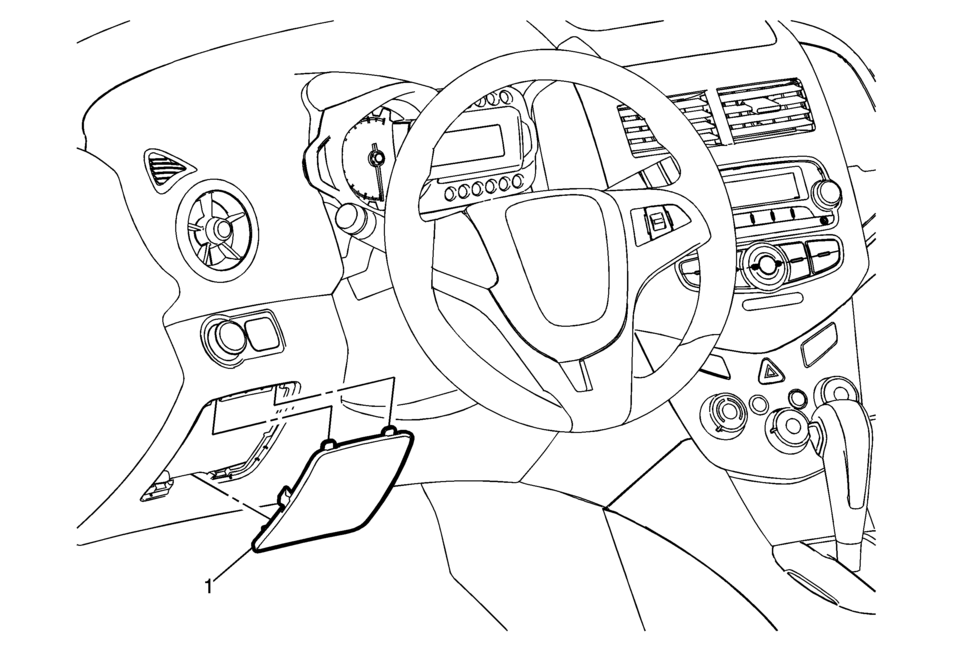

Instrument Panel Fuse Block Access Hole Cover Replacement

Callout

Component Name

1

Instrument Panel Fuse Block Access Hole Cover

Procedure

Grasp the lower edge of the fuse block cover and pull outward disengaging the retainers securing the fuse block cover to the instrument panel lower trim pad cover.

Instrument Panel Fuse Block Access Hole Cover Replacement (With AAL)
Instrument Panel Fuse Block Access Hole Cover Replacement Callout Component Name 1 Instrument Panel Fuse Block Access Ho ...

Relay Replacement (Attached to Wire Harness)
Removal Procedure Locate the relay. Refer to the Master Electrical Component List to locate the relay in the vehicle. Remove any fasteners which hold the relay in place. ...
