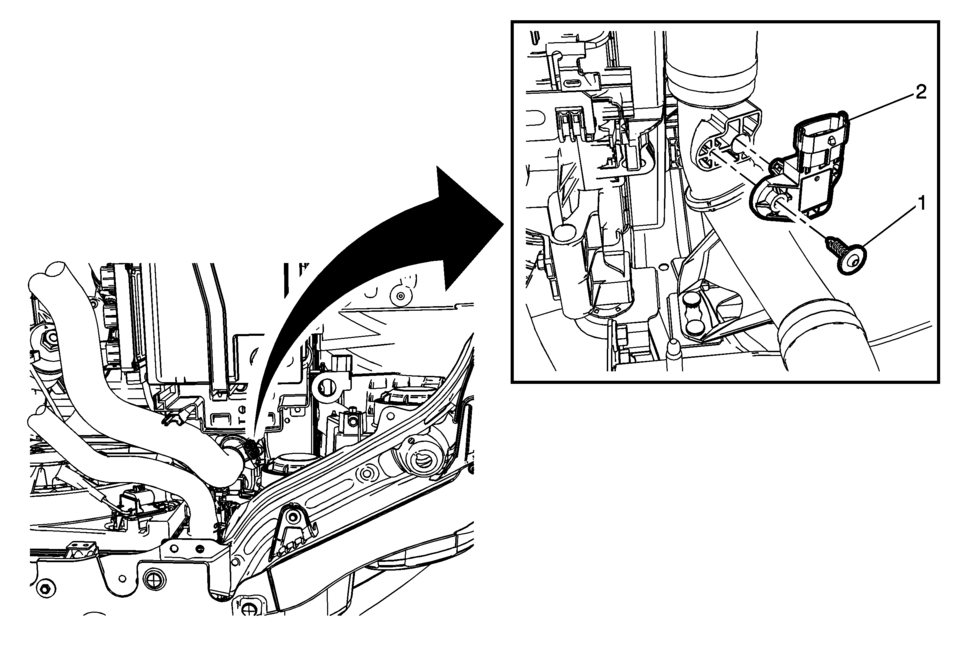

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement. |
|
|
1 |
Intake Air Temperature and Pressure Sensor Fasteners (Qty 2) Caution: Refer to Fastener Caution. |
|
2 |
Intake Air Temperature and Pressure Sensor Procedure
Disconnect the electrical connector. |
Fuel Pressure Sensor Replacement - Fuel Feed Pipe
Accelerator Pedal Position Sensor ReplacementRear Side Door Weatherstrip Replacement - Body Side
Rear Side Door Weatherstrip Replacement - Body Side
Callout
Component Name
Preliminary Procedures
Remove the upper center pillar trim. Refer to Center Pillar Upper
Trim Panel Replacement.
Remove the lower center pillar tr ...
Piston and Connecting Rod Assemble
Special Tools
EN-49941 Remover / Installer Piston Retainer Ring
For equivalent regional tools, refer to Special Tools.
Note: Lubricate the piston pin with clean engine oil.
Install the connecting rod (3) and the piston pin (2) to the piston (1).
Install t ...
Camshaft Timing Chain Installation
Special Tools
EN-952 Fixing Pin
EN-953-A Fixing Tool
EN-955-10 Fixing Pin from EN-955 Kit
For equivalent regional tools, refer to Special Tools.
The engine should be adjusted to TDC.
The crankshaft should be locked with EN-952 fixing pin.
The camshaft should be locked with EN-9 ...
