Chevrolet Sonic Repair Manual: Intake Manifold Installation

  1. Clean the sealing surfaces.

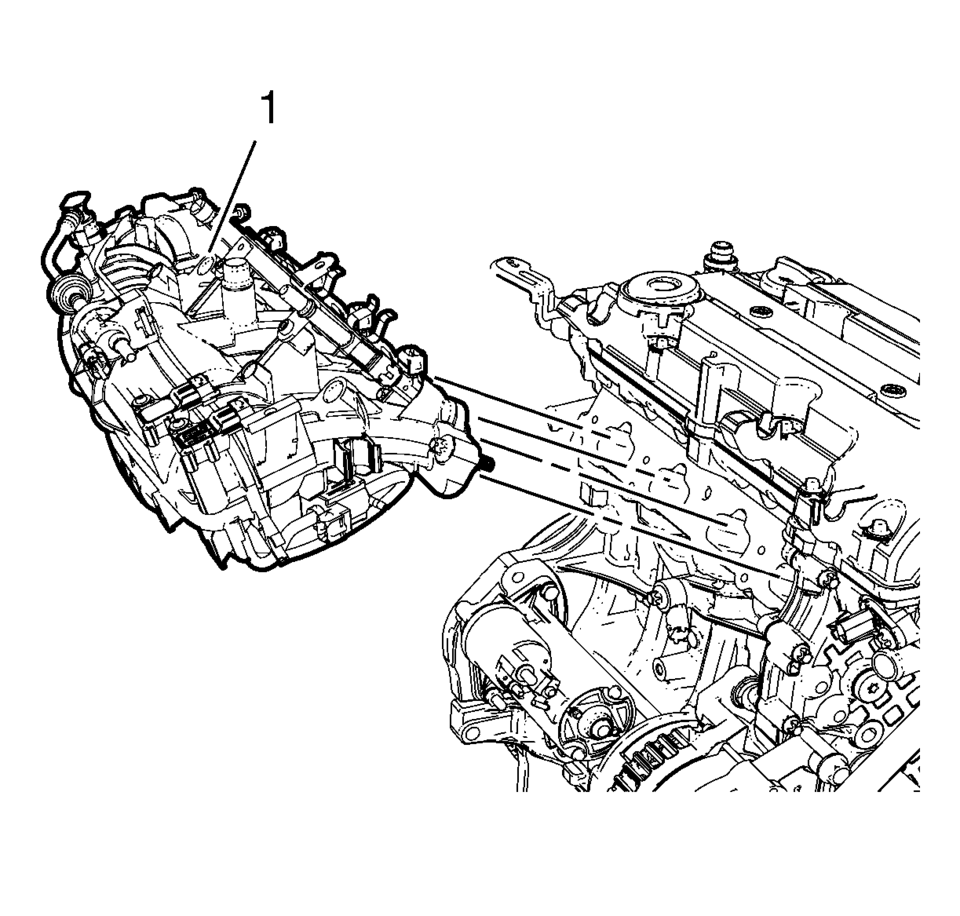

  2. Install the intake manifold (1) along with a NEW intake manifold gasket.

  3. Caution:

    Refer to Fastener Caution.

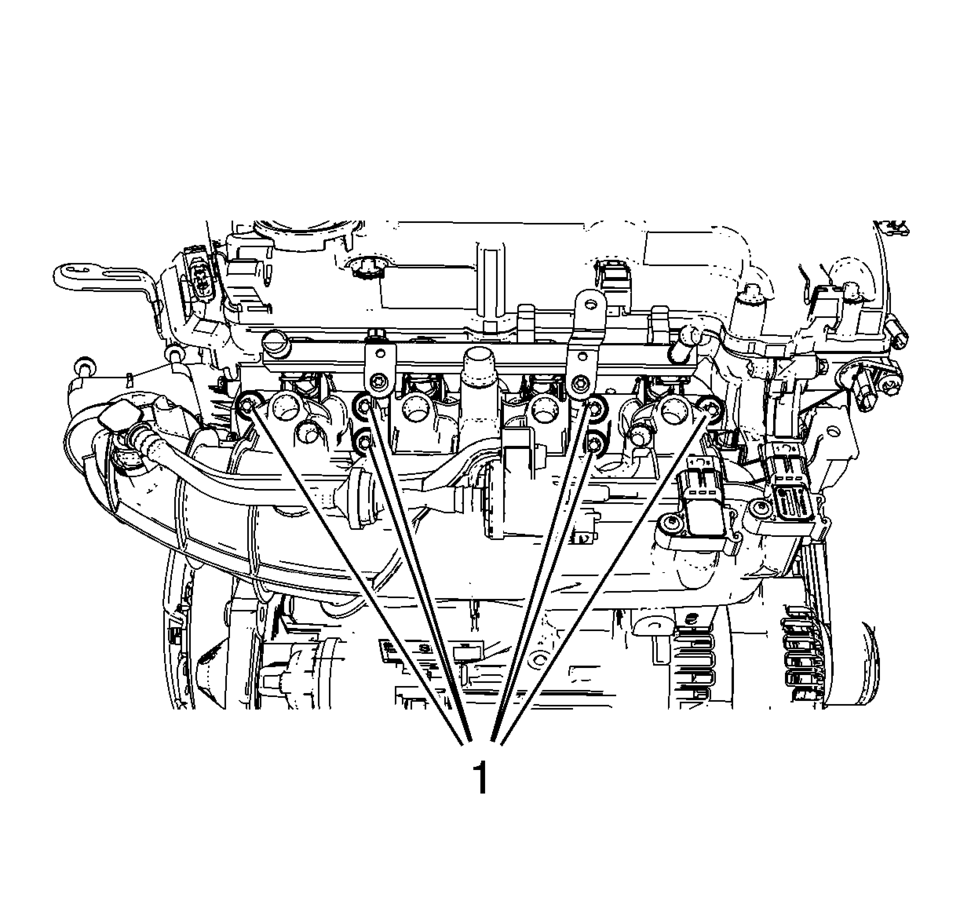

  4. Install the 6 intake manifold bolts (1) and tighten to  20 Y (15 lb ft)

    .

Intake Manifold Disassemble (1.8L LUW and LWE)
Remove the intake manifold absolute pressure sensor bolt (1). Remove the manifold absolute pressure sensor (2) from the intake manifold (3). Remove the intake ...

Intake Manifold Installation (1.6L LDE)
Clean the sealing surfaces. Insert the NEW gasket. Caution: Refer to Fastener Caution. Install the intake manifold (2) and the 7 intake manifold bolts (1) and ...
