Chevrolet Sonic Repair Manual: Oil Flow Check Valve Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Lubrication / Oil Lines / Oil Flow Check Valve Replacement



Oil Flow Check Valve Replacement

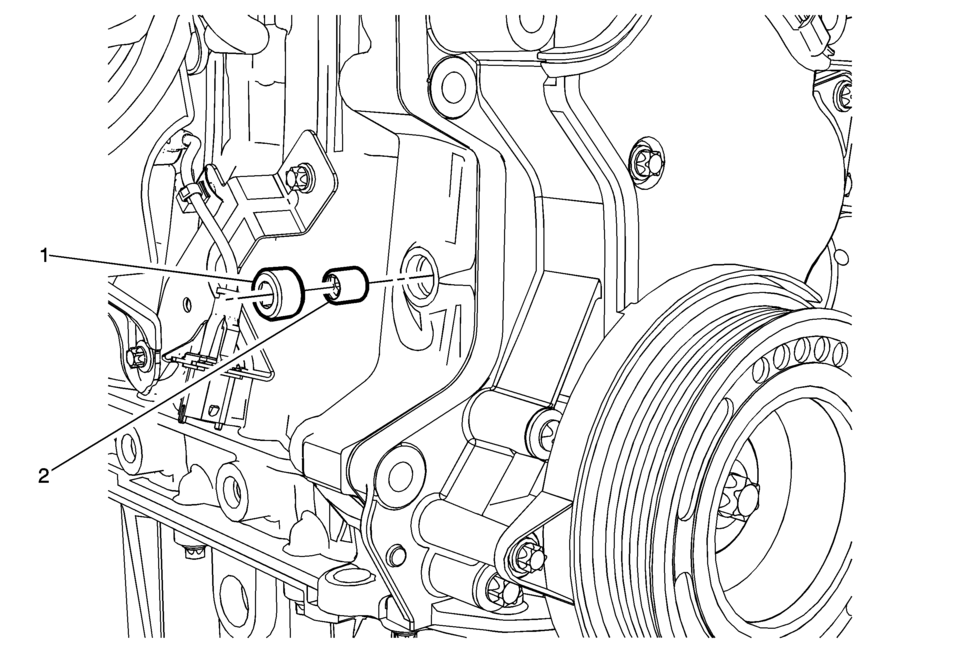

Callout

Component Name

Preliminary Procedure

Remove the generator. Refer to Generator Replacement.

1

Oil Flow Check Valve Bore Plug

Caution:

Refer to Fastener Caution.

Tighten


21 Y (16 lb ft)

2

Oil Flow Check Valve

Oil Lines
...

Oil Pump
...
