Chevrolet Sonic Owner's Manual: Parking/Turn Signal Lamp
1. Open the hood. See Hood.

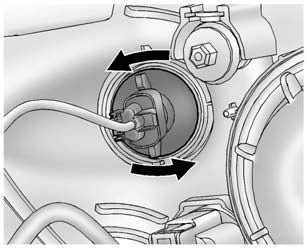

2. Remove the parking/turn signal lamp bulb socket from the headlamp assembly by turning counterclockwise.
3. Remove the bulb from the bulb socket by pulling it straight out.
4. Install the new bulb in the bulb socket.
5. Install the bulb socket into the headlamp assembly by turning clockwise.
High-Beam Headlamp/ Low-Beam Headlamp
1. Open the hood. See Hood.
2. For the driver side bulb, remove the windshield washer bottle filler neck by
turning it one-quarter turn counterclockwise and pulling it straight up and out
of the ...
Fog Lamps (LS, LT, and LTZ)
To replace the front fog lamp bulb:
1. Locate the fog lamp located under the front fascia.
2. Disconnect the electrical connector from the fog lamp bulb assembly.
3. Remove the bulb by turning it c ...
