Chevrolet Sonic Repair Manual: Radiator Air Baffle Replacement (LUV, LUW)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Radiator / Radiator Air Baffle Replacement (LUV, LUW)



Radiator Air Baffle Replacement

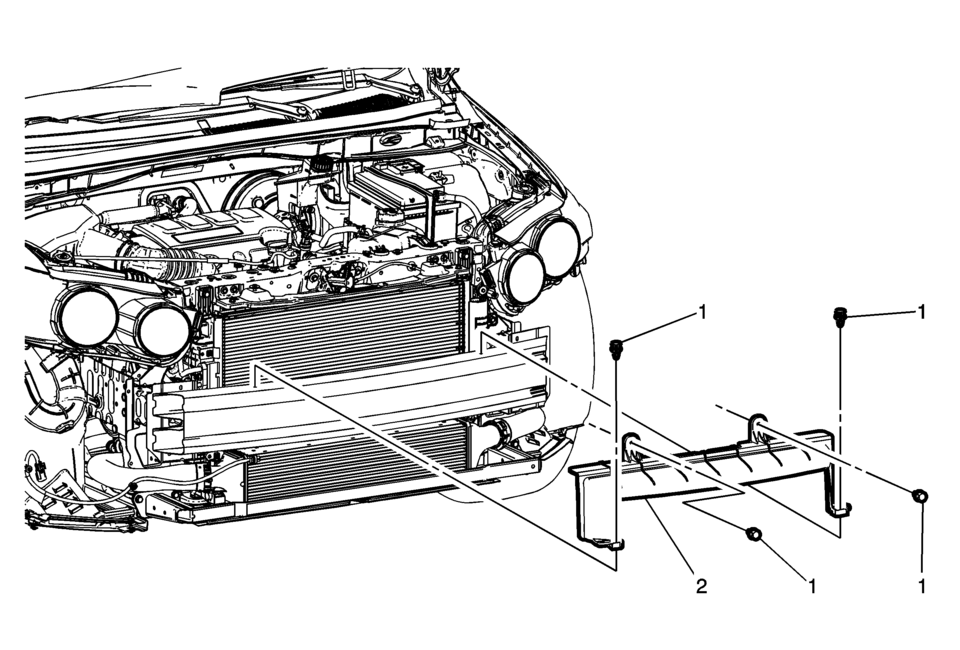

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement.

1

Radiator Air Upper Baffle Push Pin Retainers (Qty: 4)

2

Radiator Air Upper Baffle Assembly
