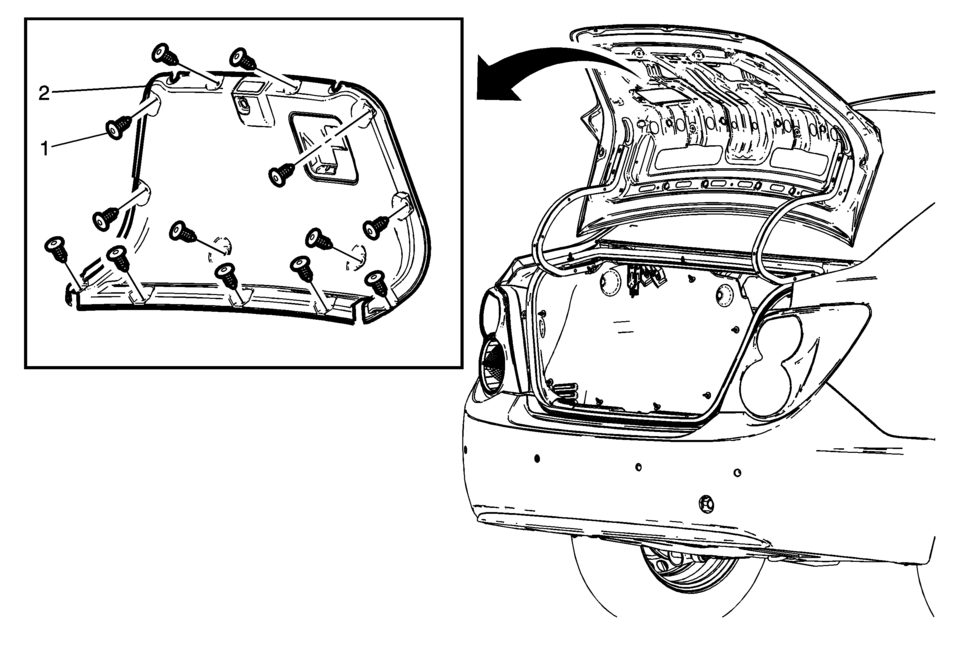

Rear Compartment Lid Inner Panel Trim Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the rear compartment lid outer bumpers.
  2. Remove the latch cover.

1

Rear Compartment Lid Inner Panel Trim Retainer (Qty:?€‰13)

Procedure

Use a trim removal tool to aid in the removal of the rear compartment trim panel.

2

Rear Compartment Lid Inner Panel Trim
