Chevrolet Sonic Repair Manual: Rear Compartment Side Trim Replacement - Left Side (Sedan)

Chevrolet Sonic Repair Manual / Body / Body Interior / Trim Panels/Welts / Rear Compartment Side Trim Replacement - Left Side (Sedan)

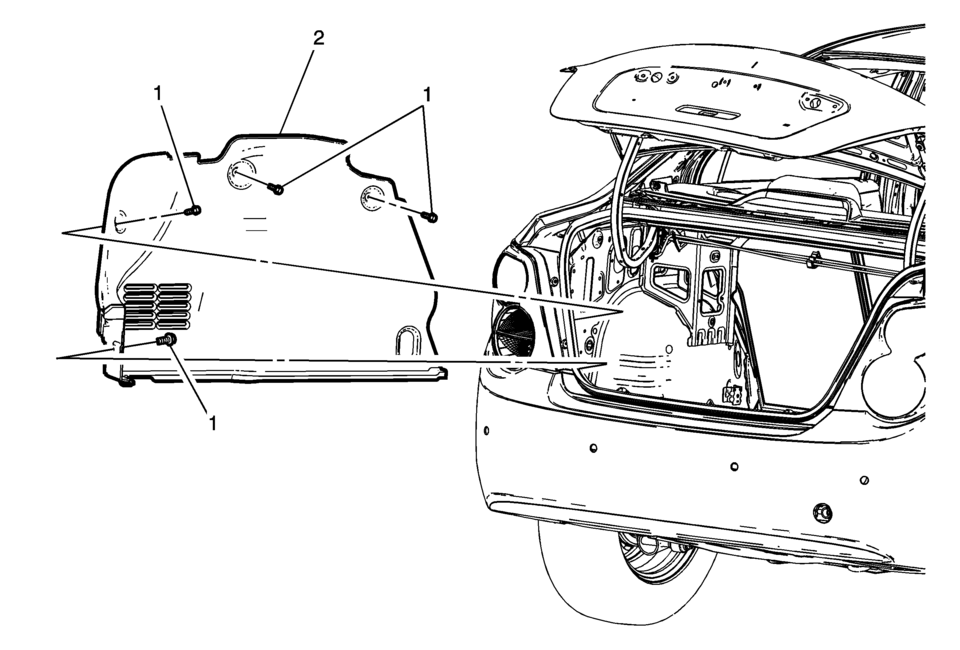

Rear Compartment Side Trim Replacement - Left Side

Callout

Component Name

Preliminary Procedures

  1. Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement.
  2. Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement.

1

Rear Compartment Side Trim Retainer (Qty:?€‰4)

2

Rear Compartment Side Trim
