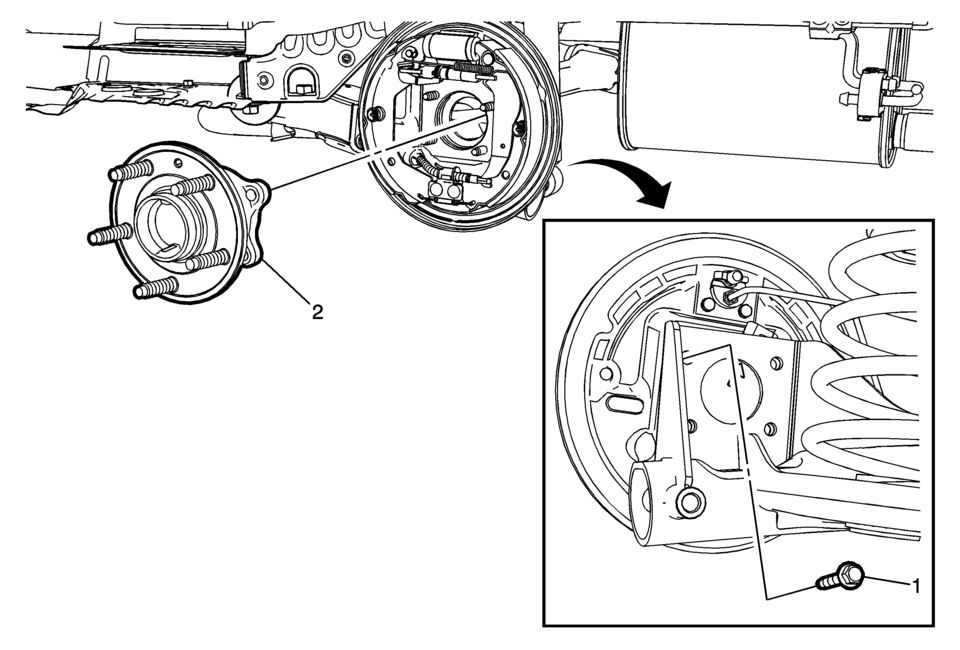

Rear Wheel Bearing and Hub Replacement

Callout

Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
  3. Remove the rear brake drum. Refer to Brake Drum Replacement.

1

Rear Wheel Bearing/Hub Mounting Bolt (Qty 4)

Caution:

Refer to Fastener Caution.

Procedure

Remove the electrical connector for the rear wheel speed sensor.

Tighten


58 Y (43 lb ft)

2

Rear Wheel Bearing/Hub Assembly

Procedure

Ensure that the rear wheel bearing/hub is properly aligned with the rear axle to allow access to the wheel speed sensor connector.
