Chevrolet Sonic Repair Manual: Rear Wheelhouse Liner Replacement (Sedan - Right)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Rear Wheelhouse Liner Replacement (Sedan - Right)



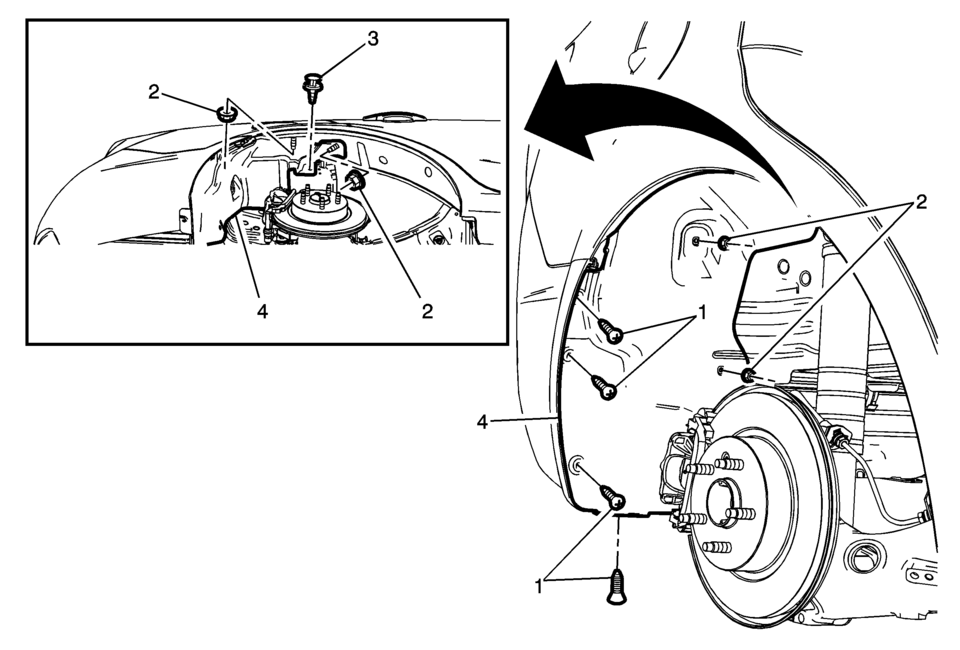

Rear Wheelhouse Liner Replacement

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Rear Wheelhouse Panel Liner Screw (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Rear Wheelhouse Panel Liner Nut (Qty:?€‰4)

Tighten


2?€‰Y (18?€‰lb?€‰in)

3

Rear Wheelhouse Panel Liner Push-In Retainer

4

Rear Wheelhouse Panel Liner
