Chevrolet Sonic Repair Manual: Secondary Air Injection Check Valve Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Air Injection / Secondary Air Injection Check Valve Installation

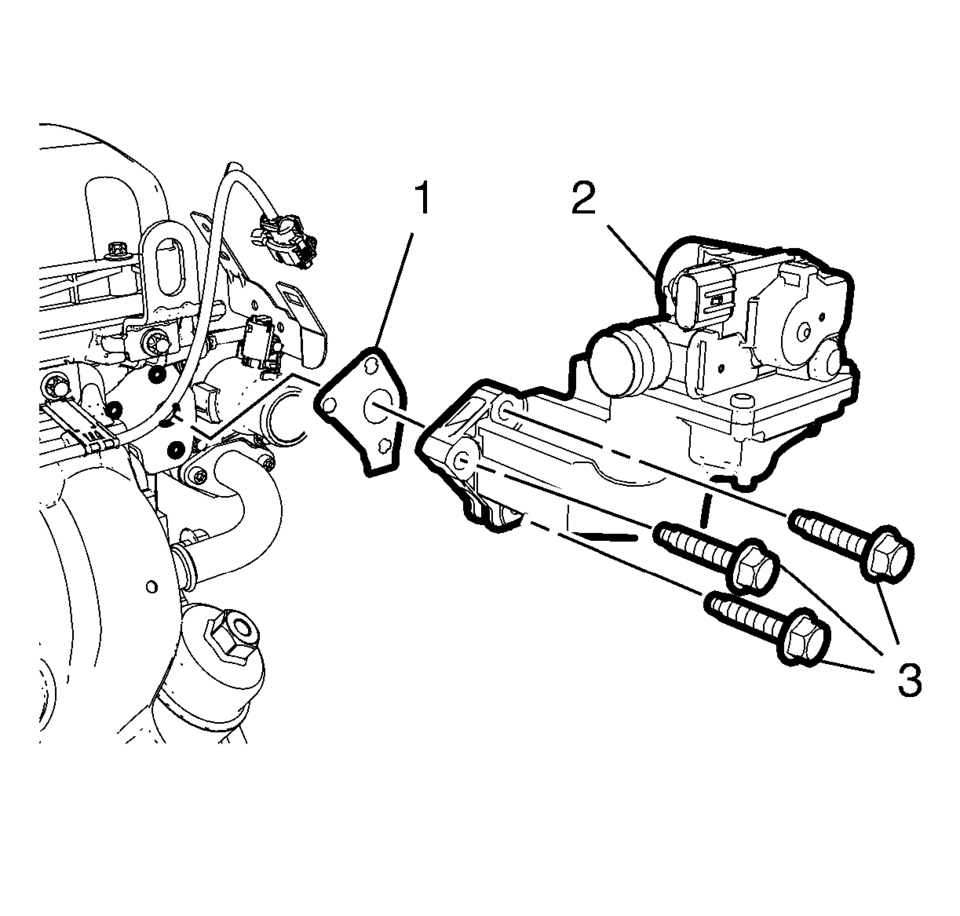

    Install a NEW secondary air injection check valve gasket (1).
  1. Install a NEW secondary air injection check valve gasket (1).
  2. Install the secondary air injection check valve (2).
  3. Caution:

    Refer to Fastener Caution.

  4. Install the 3 secondary air injection check valve bolts (3) and tighten to 22 Y (16 lb ft)

    .

Air Injection
...

Secondary Air Injection Check Valve Removal
Remove the 3 secondary air injection check valve bolts (3). Remove the secondary air injection check valve (2). Remove and DISCARD the secondary air injection check valv ...
