Chevrolet Sonic Repair Manual: Secondary Air Injection Pump Pipe Replacement



Secondary Air Injection Pump Pipe Replacement

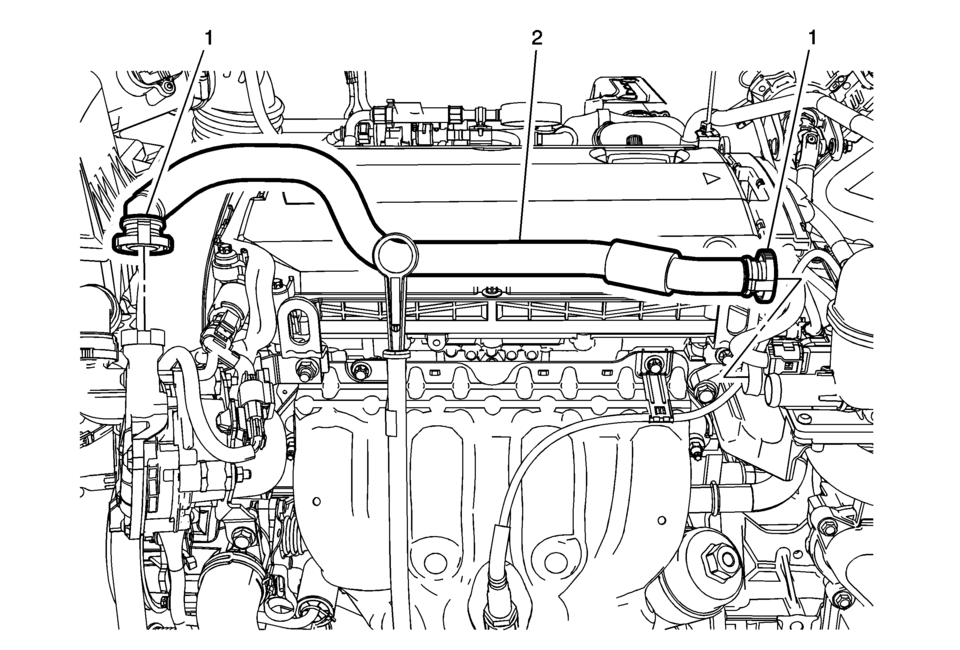

Callout

Component Name

1

Hose Retainer (QTY:2)

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Pipe.

Procedure

Disconnect the pipe from the secondary air injection pump and the secondary air injection check valve.

Secondary Air Injection Pump Air Cleaner Pipe Replacement
Secondary Air Injection Pump Air Cleaner Pipe Replacement Callout Component Name 1 Hose Retainer (QTY:2) Note: S ...

Secondary Air Injection Pump Replacement
Secondary Air Injection Pump Replacement Callout Component Name 1 Secondary Air Injection Pump Inlet Pipe Note: ...
