Chevrolet Sonic Repair Manual: Side Window Defogger Outlet Grille Replacement
|

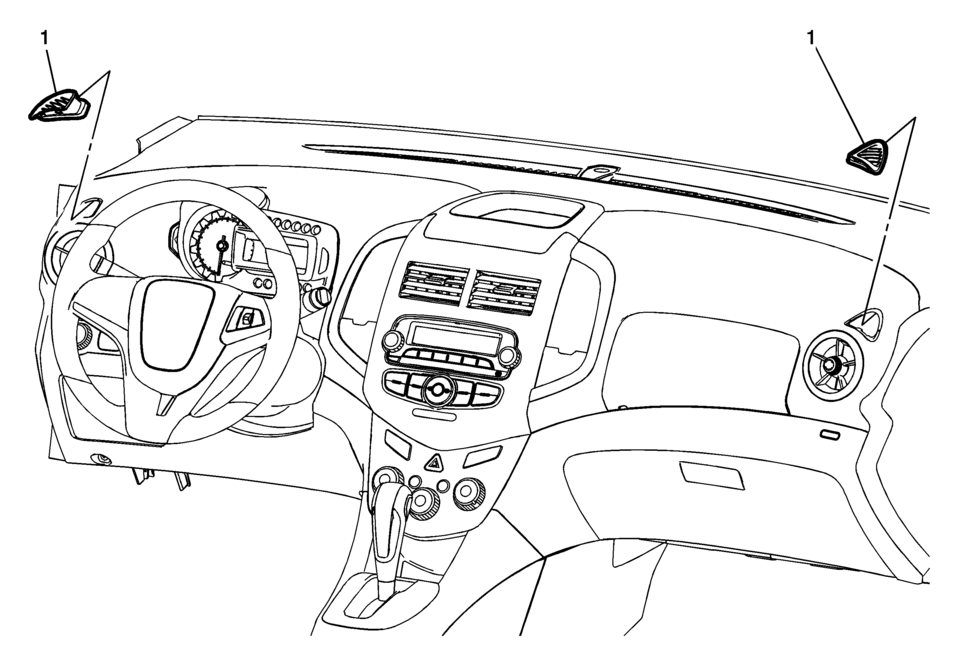

Callout |
Component Name |
|---|---|
|
1 |
Side Window Defroster Outlet Grille (Qty: 2) Procedure
Use a flat bladed plastic trim tool to aid in the removal of the grille assemblies from the instrument panel. |
