Chevrolet Sonic Repair Manual: Special Tools

Illustration

Tool Number/Description


CH 21177

J 21177-A

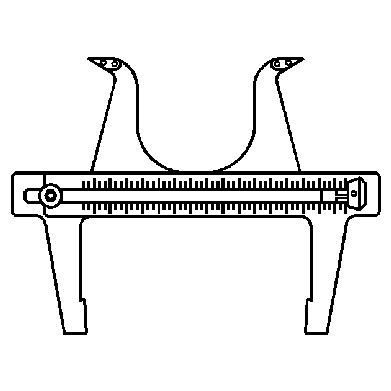

Drum to Brake Shoe Clearance Gauge


CH 41013

J 41013

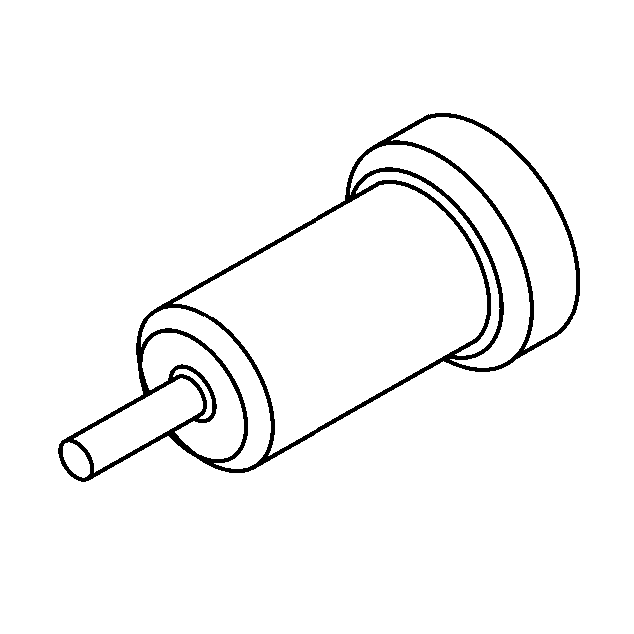

Rotor Resurfacing Kit


CH 42450-A

J 42450-A

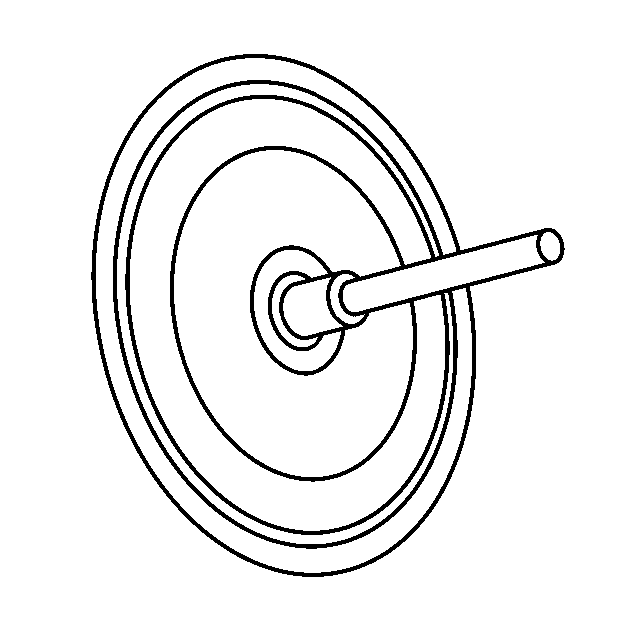

Wheel Hub Resurfacing Kit


CH 8001

J 8001

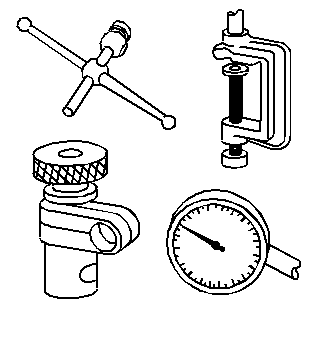

Dial Indicator Set

Rear Wheel Bearing and Hub Replacement (Drum Brake)
Rear Wheel Bearing and Hub Replacement Callout Component Name Preliminary Procedures Raise and support the vehicle. Refer to Liftin ...

Brake Shoe Replacement (J93, J94)
Removal Procedure Warning: Refer to Brake Dust Warning. Note: Always replace brake shoes in axle sets. Raise and support the vehicle. Refer to Lifting and Jackin ...
